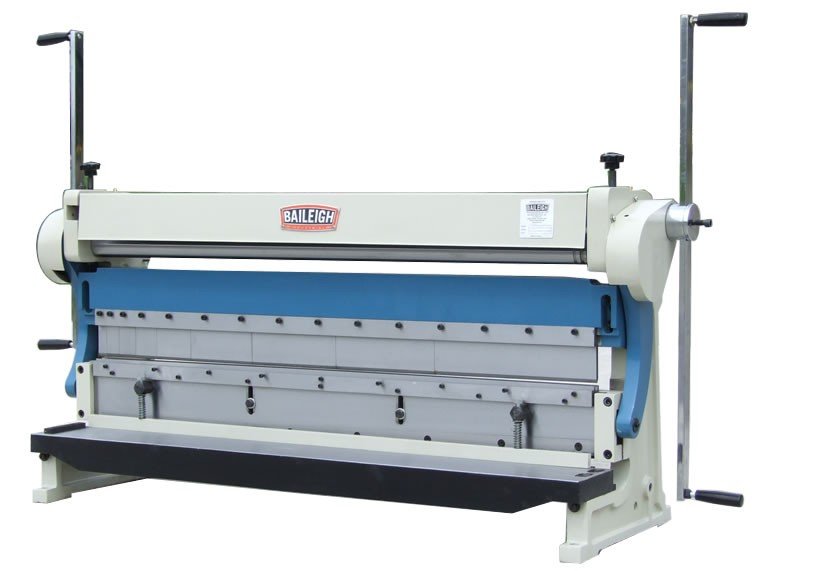

Baileigh Shear Brake Roll SBR-5216

Baileigh Shear Brake Roll SBR-5216 is a Baileigh Industrial product in the Shears collection.

Product Details

• Combination Shear, Sheet Metal Brake, And Slip Roll
• 52" Forming Width
• 16-Gauge Mild Steel Capacity
• Segmented Fingers On Brake
• The SBR-5216 is unlike anything on the market, this shear roller brake has a massive 16 gauge mild steel capacity over its entire with of 52". This one machine consists of a low production press brake, slip roll, and sheet metal shear. The SBR-5216 is the most powerful 3-in-1 combination machine on the market and is offered at an economical price making it perfect for home shops, industrial art shops, and other facilities where small production runs don't justify dedicated individual machines.
• The shear portion of the SBR-5216 has a spring loaded clamp that keeps the material from lifting up, which extends blade life and helps with cut quality. A blade gap adjustment, as well as a material guide is also included. The manual press brake section has removable and movable top fingers and the bottom V-block die that is fixed. The different fingers allow for many types of boxes and pans to be made. The rolls on the slip roll section are hardened for long life and have three wire grooves, in case wire forming is needed. The back and top rolls are also adjustable to help with forming different thicknesses.
• Specifications
• Max. Material Thickness (Stainless Steel): .039"
• Rolling Capacity: 16 ga. (.060")
• Shear Capacity: 16 ga. (.060")
• Min. Rolling Dia.: 1.70"
• Bending Capacity: 16 ga. (.060")
• Max. Bend Angle: 90 deg.
• Power: Manual
• Shipping Weight: 1200 lbs
• Shipping Dimensions: 67" x 30" x 46"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006972
• UPC: 731325412482
• Shipping Method: LTL Freight
• Weight: 1,200 lb
• Dimensions: 71 × 24 × 37 in
• Country of Origin: China
