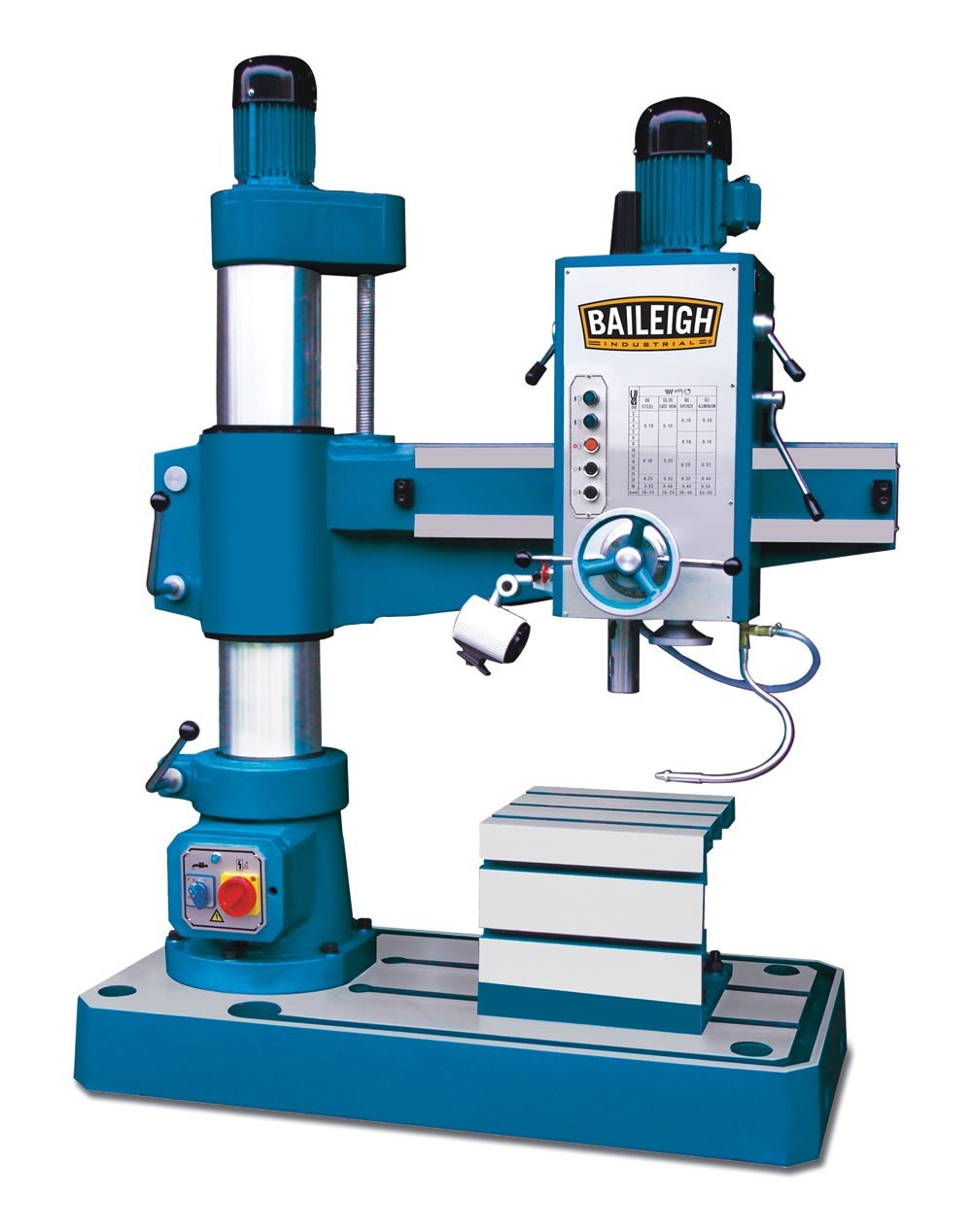

Baileigh Radial Drill- RD-1000M

Baileigh Radial Drill- RD-1000M is a Baileigh Industrial product in the Drill Presses collection.

Product Details

• 1.57" maximum drilling capacity
• Heavy duty construction
• Power down feed
• 39.3" reach
• Description
• MT4 spindle
• 9.4" Column
• Box Shape Worktable
• Specifications
• Max. Drill Capacity: 1.57"
• Distance from Spindle to Column Center: 7.8" to 39.3"
• Diameter of Column: 9.4"
• Spindle Taper: MT4
• Spindle Travel: 9.8"
• Spindle Speed Range: 71 to 1800 rpm
• Range of Spindle Feeds: .005" to .02"
• Spindle Feeds: 4
• Distance Between Spindle Nose and Base: 10.3" to 41.8"
• Table Size: 15.7" x 17.7" x 15.7"
• Base Size: 29" x 20"
• Overall Size: 68" x 29.5" x 93"
• Motor: 2 hp (Spindle) 3/4 hp (Lifting)
• Coolant Pump: 1/8 hp
• Power: 220V 3-phase
• Shipping Weight: 9460lbs
• Shipping Dimensions (Inches): 74" x 39" x 87"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1008487
• UPC: 731325421002
• Shipping Method: LTL Freight
• Weight: 3,740 lb
• Dimensions: 74 × 39 × 87 in
• Country of Origin: China
