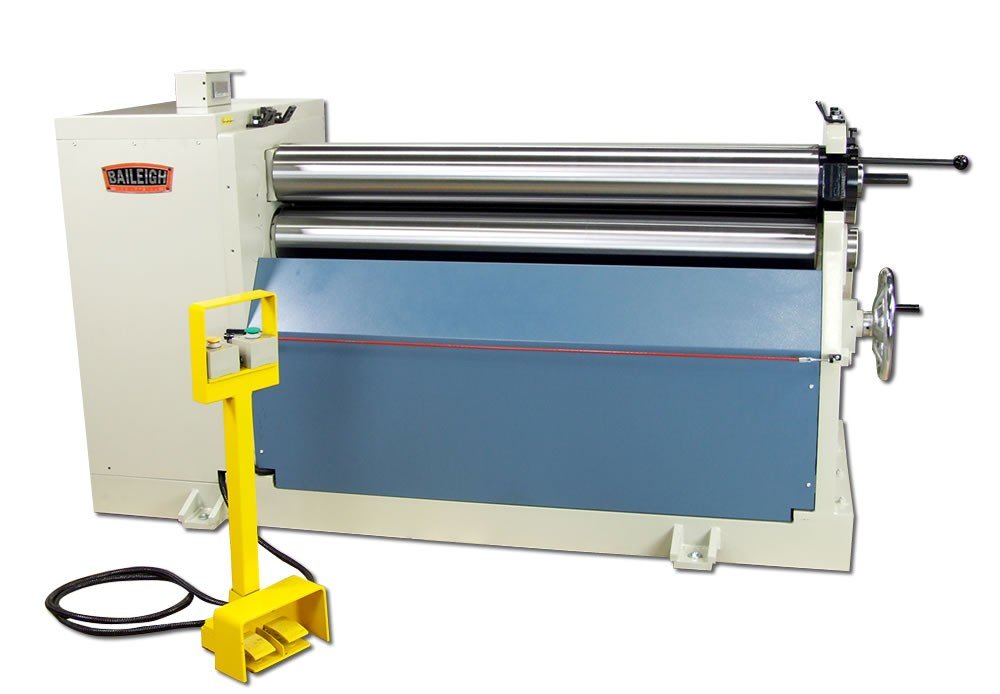

Baileigh Plate Roll PR-503

Baileigh Plate Roll PR-503 is a Baileigh Industrial product in the Plate Roll collection.

Product Details

• 61" Forming Width
• 1/4" Mild Steel Capacity
• 3 Driven Rolls
• Hydraulic Back Roll
• The PR-503 plate bending roll is a true workhorse and a staple of the Baileigh Industrial line of plate rolls The PR-503 has a maximum 61" forming width, and can roll up to 3 gauge (1/4") mild steel sheet metal at that the full width. The PR-503 sheet metal roller is completely hydraulically driven for increased durability and reliability. All 3 rolls are driven on the PR-503 plate bending machine such that the operator can roll more material faster and increase the productivity of the shop.
• For even more productivity, a digital readout is also standard on the PR-503 plate roll. This readout tracks the position of the back roll for increased accuracy and less waste. Increased safety was also a thought when designing the PR-503. Like all Baileigh Industrial plate rolls, includes dual emergency stop cables that are located on both the front and back of the machine. The top roll on the PR-503 has a very simple release mechanism to release work that has been wrapped around the top roll. The PR-503 plate roll also has an optional coning attachment for creating conical bends without marring the frame of the roller. Baileigh Industrial’s PR-503 plate bending roll uses a simple and rugged design, offering the medium to small fabricator years of quality service.
• Roll Speed: 5 rpm.
• Upper Roll Dia.: 7"
• Roll Adjustment Back: Hydraulic
• Minimum Forming Dia.: 10.500"
• Motor: 5 HP
• Capacity (Mild Steel): .250"
• Forming Width: 61"
• Power: 220V / 3-Phase
• Shipping Weight: 6380 lbs.
• Shipping Dimensions: 98" x 36" x 56"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006531
• UPC: 731325410945
• Shipping Method: Flatbed
• Weight: 6,380 lb
• Country of Origin: Taiwan
