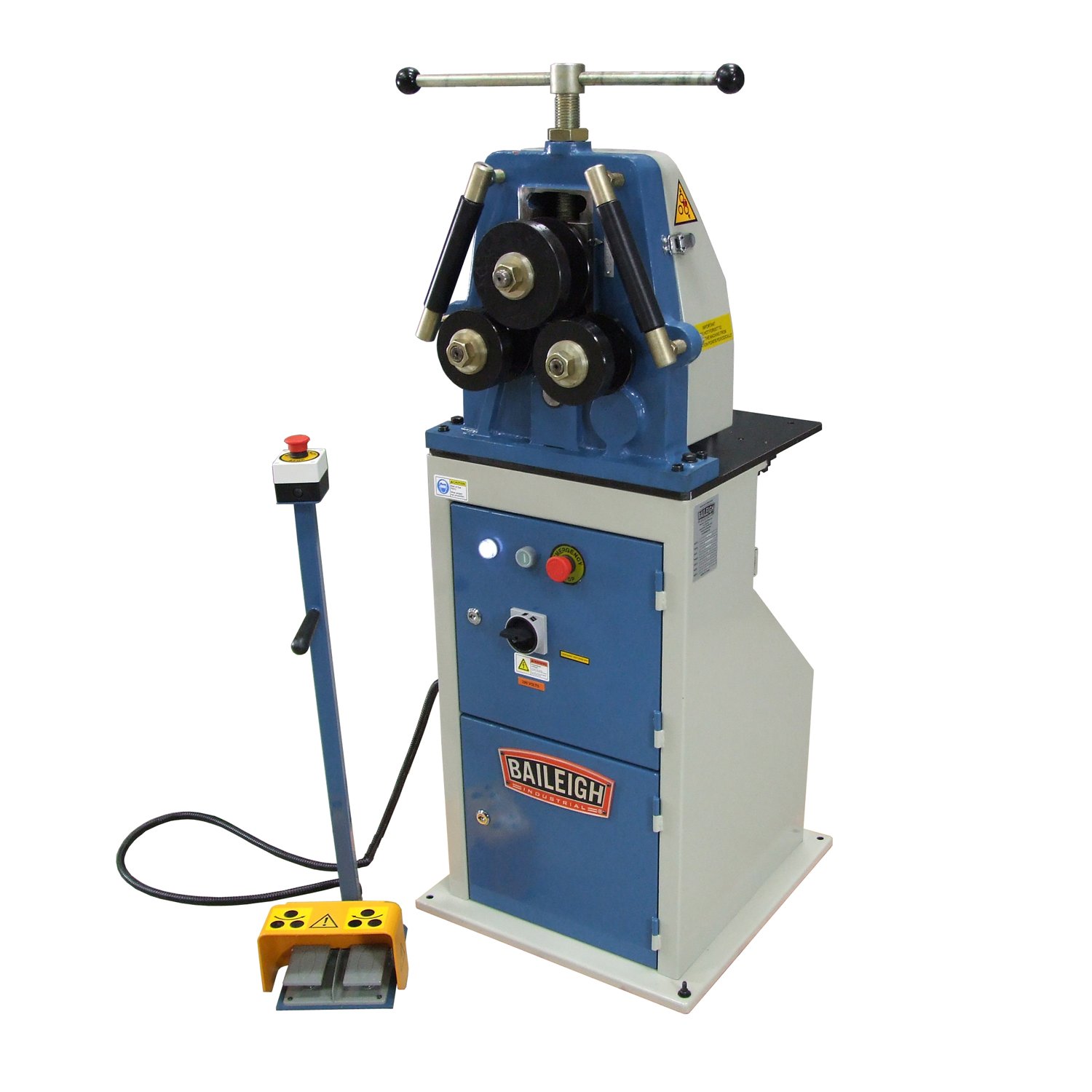

Baileigh Manual Roll Bender R-M10E

Baileigh Manual Roll Bender R-M10E is a Baileigh Industrial product in the Roll Benders collection.

Product Details

• Motor Hp 2
• Roll Adjustment Manual
• Pipe Capacity Size: 1" (sch. 40) / Min. Dia.: 28"
• Round Tube Capacity Size: 1.25" (.078") / Min. Dia.: 31.5"
• Description
• Baileigh introduced the R-M10E as an answer to our custoemrs wants. This electric ring roller has proved to be a life saver for those fabrication shops that need s little more production that the R-M10 can provide.
• 220 Volt 3 phase
• Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
• Open-face design allows you to roll full circles.
• Manual drive includes reduction gearbox to cut down on physical effort.
• Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing.
• Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.
• Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.
• Machine base opens to a handy storage cabinet.
• Many optional sizes of tooling are available for round tube and pipe, among other profiles.
• Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
• Specifications
• Square Tube Capacity Size: 1.25" (.078") / Min. Dia.: 35"
• Solid Round Capacity Size: .875" / Min. Dia. 20"
• Flat Bar Easy Way 2" Thick / Min Dia. 15.75"
• Flat Bar Hard Way .75" Thick / Min Dia. 6.5"
• Angle Iron Capacity Size: 1.25" (.157") / Min. Dia.: 30"
• Shaft Diameter 1.181"
• Shaft Center Distance 6.7"
• Lower Roll Dia. 4.65"
• Pinch Single
• Power 220 Volt Three Phase
• Shipping Weight 600 lbs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• Shipping Dimensions 60" x 44" x 68"
• *All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.*

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1013217
• UPC: 19907863625
• Shipping Method: LTL Freight
• Weight: 630 lb
• Dimensions: 60 × 44 × 68 in
• Country of Origin: China
