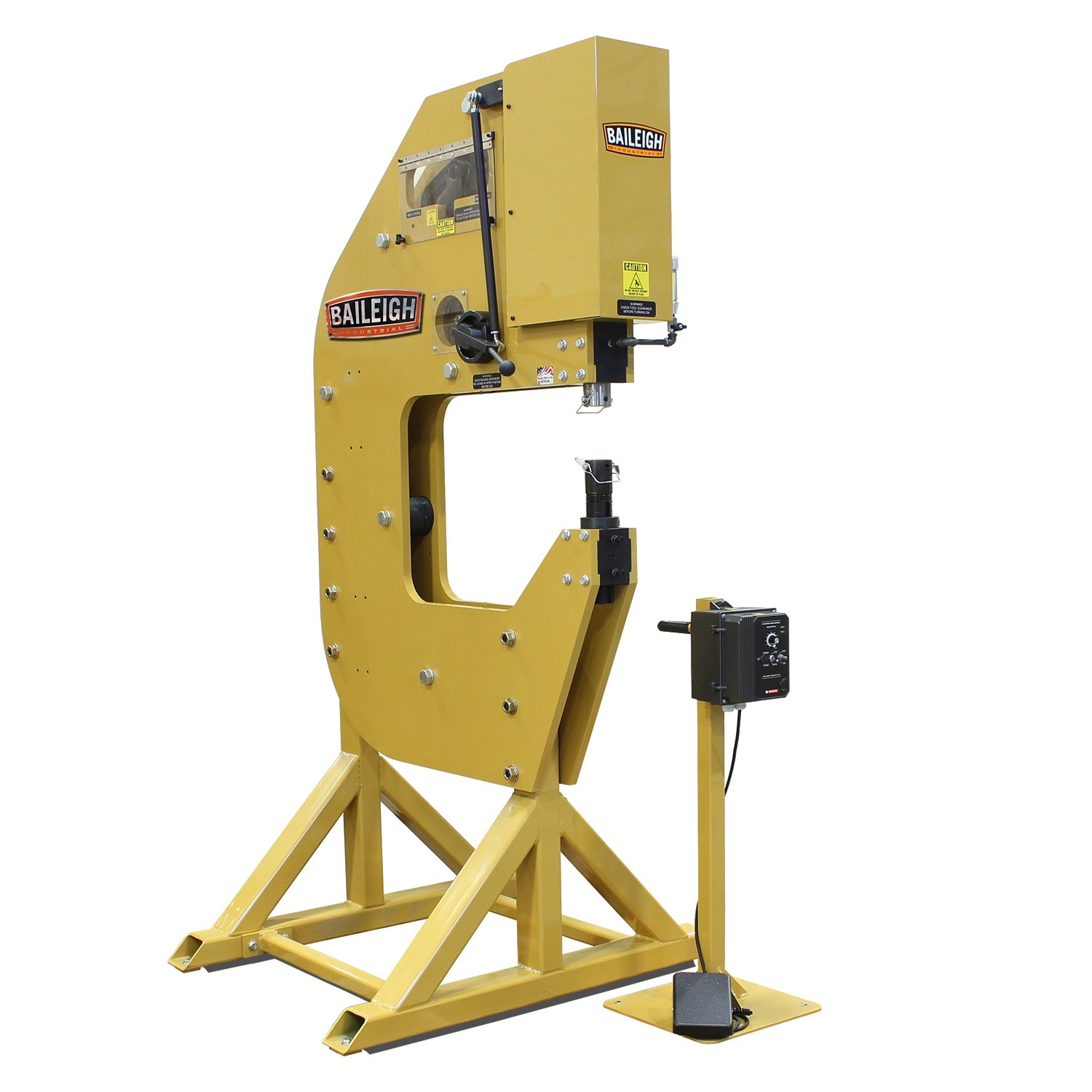

Baileigh Industrial 3HP 220V Single Phase Power Hammer PH-28HD-VS 1021656

Baileigh Industrial 3HP 220V Single Phase Power Hammer PH-28HD-VS 1021656 is a Baileigh Industrial product in the Metal Forming & Shaping collection.

Product Details

• Mild Steel Capacity: 14 ga.
• Aluminum Capacity: 10 ga.
• Tooling Height Adjustment: 2"
• Throat Depth: 28"
• Description
• The PH-28HD-VS power hammer can hit harder and move metal faster than most hammers its size. This USA-made machine lets you shape multiple sheets at once, then planish them out.
• Recommended for: Automotive shops that need to shape metal quickly and often work on fenders.
• Features
• 28” throat with deep cutout designed for fenders.
• Large 14 gauge mild steel capacity.
• Variable speed from 0 to 1,000 beats per minute.
• 3 hp motor runs on 220-volt single-phase power.
• Developed over 20 years of research to find what’s most important to metal shapers.
• Hits up to 75% harder than its predecessor, the MH-19.
• Incorporates Dupont linkage (also used on Baileigh’s massive MH-37HD) to shape heavier gauges of steel.

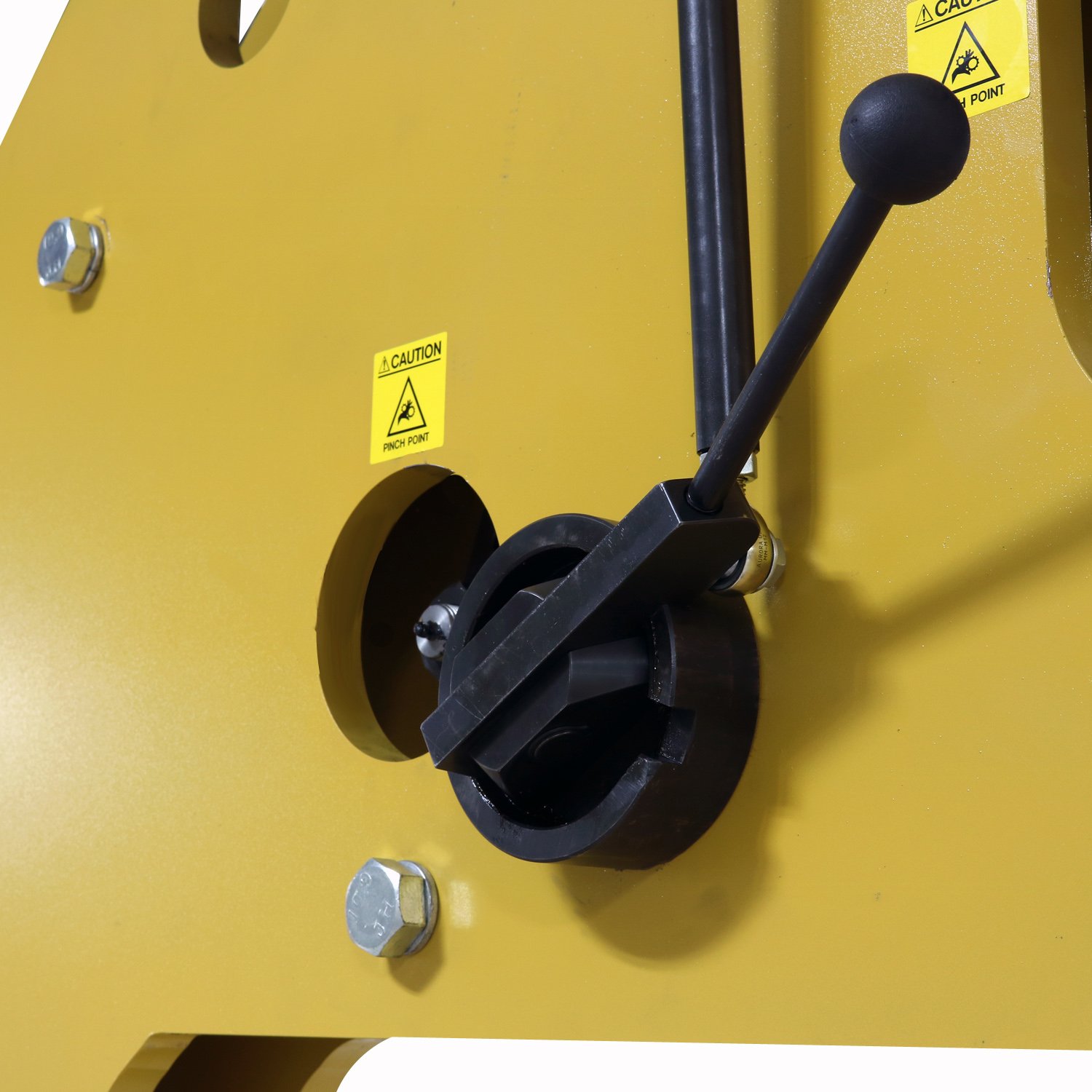

• Quick-release design lets you get the tooling out of the way to add or remove your panel.

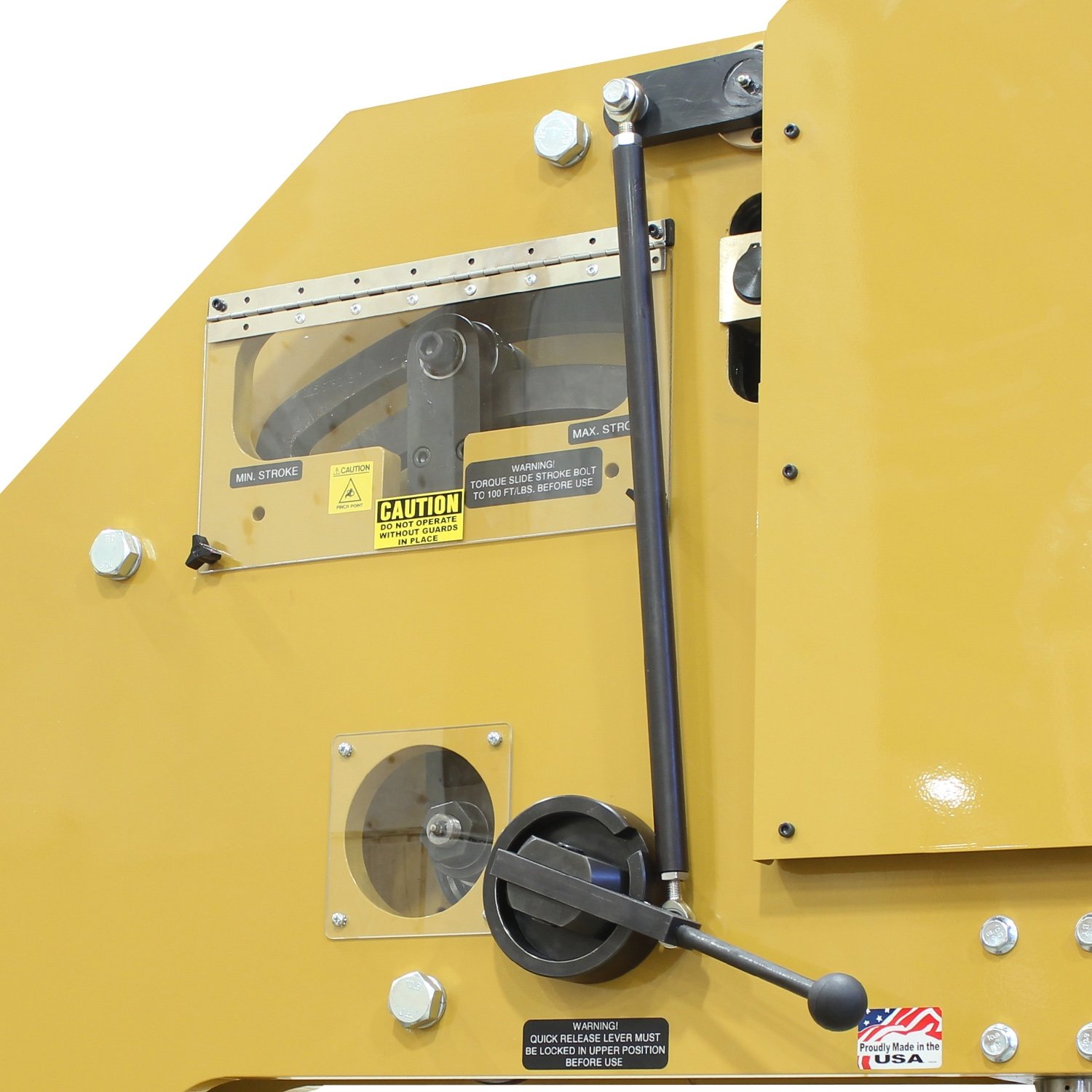

• Switch between 3 fixed stroke settings on the fly: 1/4”, 1/2”, 3/4”.
• Adjust the lower ram up or down via a large acme thread, so you won’t need to shim if different tool thicknesses are required.
• Simple, proven mechanism uses easily replaceable, off-the-shelf die springs.
• Floating chain and sprocket setup eliminates the leather strap commonly found on legacy hammers.
• You can add an optional planishing hammer attachment to the side of this power hammer.
• Rigid 1” plate steel frame ensures high-quality, controllable shaping force and won’t buckle under the heavy hits.
• Portable pedestal raises the working height and allows better visibility of the hit mark.
• Covered by a 1-year parts warranty.
• Baileigh’s team of experienced metal shapers is here to provide lifetime technical support by phone.
• Specifications
• Item Number: PH-28HD-VS
• Country of Manufacture: United States
• Motor Hp: 3
• Speed: 0 – 1000 beats / min (Variable)
• Working Height: 62.5"
• Length of Stroke Adjustment: 3 Fixed Lengths: 1/4", 1/2", 3/4"
• Power: 220V / 1-phase
• Shipping Weight: 2,000 lbs.
• Special Notes: Does Not Include Tooling, Uses Same Tooling as MH-19. Please consult a Baileigh Rep. for proper tooling.
• Shipping Dimensions (L x W x H): 60” x 50” x 98”
• Options
• Optional Tooling: Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-PH28HD
• UPC: 19907625940
• Shipping Method: LTL Freight
• Weight: 2,015 lb
• Dimensions: 60 × 50 × 98 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
