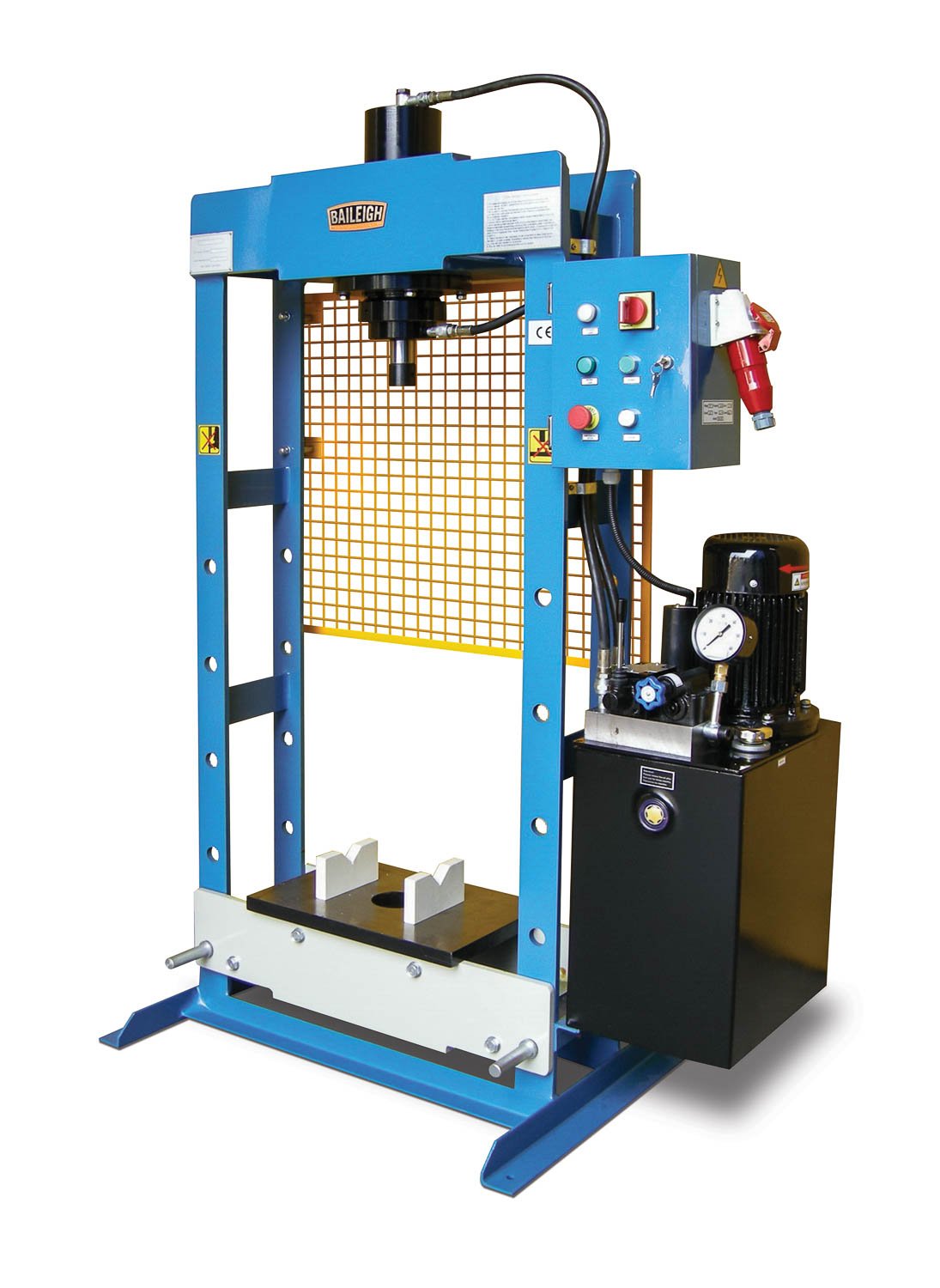

Baileigh Industrial 3HP 220V Single Phase 30 Ton Hydraulic H-Frame Press HSP-30M 1012401

Baileigh Industrial 3HP 220V Single Phase 30 Ton Hydraulic H-Frame Press HSP-30M 1012401 is a Baileigh Industrial product in the Hydraulic Presses collection.

Product Details

• Maximum Capacity: 30 ton
• Working Speed: 0.197" / sec.
• Working Width: 27.5"
• Piston Head Diameter: 2"
• Description
• With its sturdy plate steel construction and piston-style hydraulic pump, this 30-ton hydraulic press for sale offers one of the best values on the market.
• *This model is a Scratch and Dent version with minor paint damage only. Operates as normal but can be sold as new, Baileigh’s loss is your gain!
• Features
• 30-ton capacity hydraulic press.
• 27.5” working width.
• 5.74” diameter cylinder with 9.8” stroke.
• 3 hp motor runs on 200-volt single-phase power.

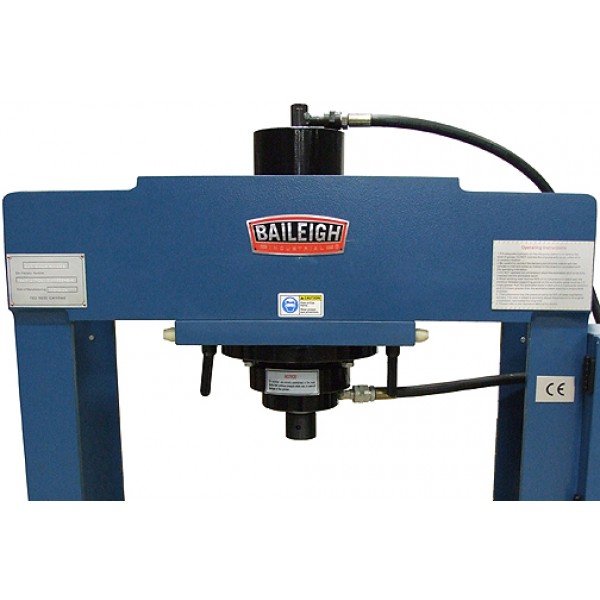

• Cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
• Comes standard with a pressure gauge.
• Includes 2-piece V-block.
• Fully-welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing.
• Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.
• Specifications
• Item Number: HSP-30M
• Return Speed: 0.25" / sec.
• Motor: 3 hp
• Pump Speed: 0.95 gal/min
• Oil Capacity: 13 gal.
• Included Accessories: Included Accessories
• Cylinder Stroke: 9.8"
• Cylinder Movable: Yes
• Cylinder Diameter: 5.74"
• RPM: 1440
• Distance from Table to Ram: Min. 9.84" – Max. 41.34"
• Power: 220 Volt Single Phase
• Shipping Weight: 1,060 lbs.
• Things to Know Before Purchase: These Presses are considered Scratch & Dent and have minor paint scrapes, for more information please call a sales representative
• Shipping Dimensions (L x W x H): 60” x 48” x 82”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1012401
• UPC: 731325119725
• Shipping Method: LTL Freight
• Weight: 1,060 lb
• Dimensions: 60 × 48 × 82 in
• Warranty: 1 Year (Parts)
