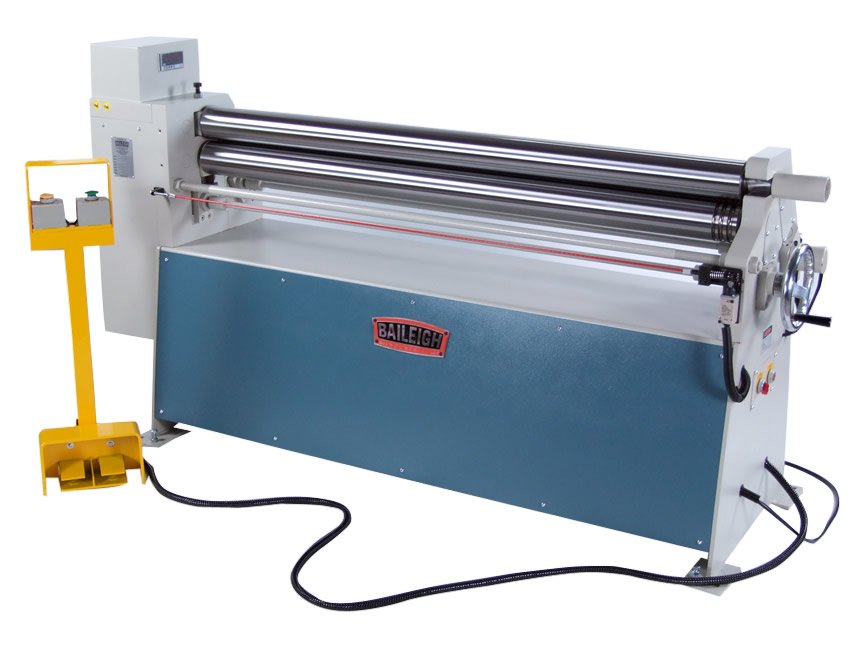

Baileigh Industrial 2HP 220V Single Phase 60” Metal Plate Roller PR-514 BA9-1006546

Baileigh Industrial 2HP 220V Single Phase 60” Metal Plate Roller PR-514 BA9-1006546 is a Baileigh Industrial product in the Plate Roll collection.

Product Details

• Roll Speed: 6 rpm
• Upper Roll Dia.: 3.50"
• Minimum Forming Dia.: 5.25"
• Capacity (Mild Steel): 14 ga. (0.075")
• Description
• The PR-514 metal plate roller is perfect for small and medium applications. It comes standard with time-saving features, like a DRO, foot pedal controls, and an additional hydraulic motor.
• Features
• 5' working width.
• 14 gauge mild steel capacity across its full width.
• 2 hp 220-volt single-phase motor transfers power directly to the driven rolls.

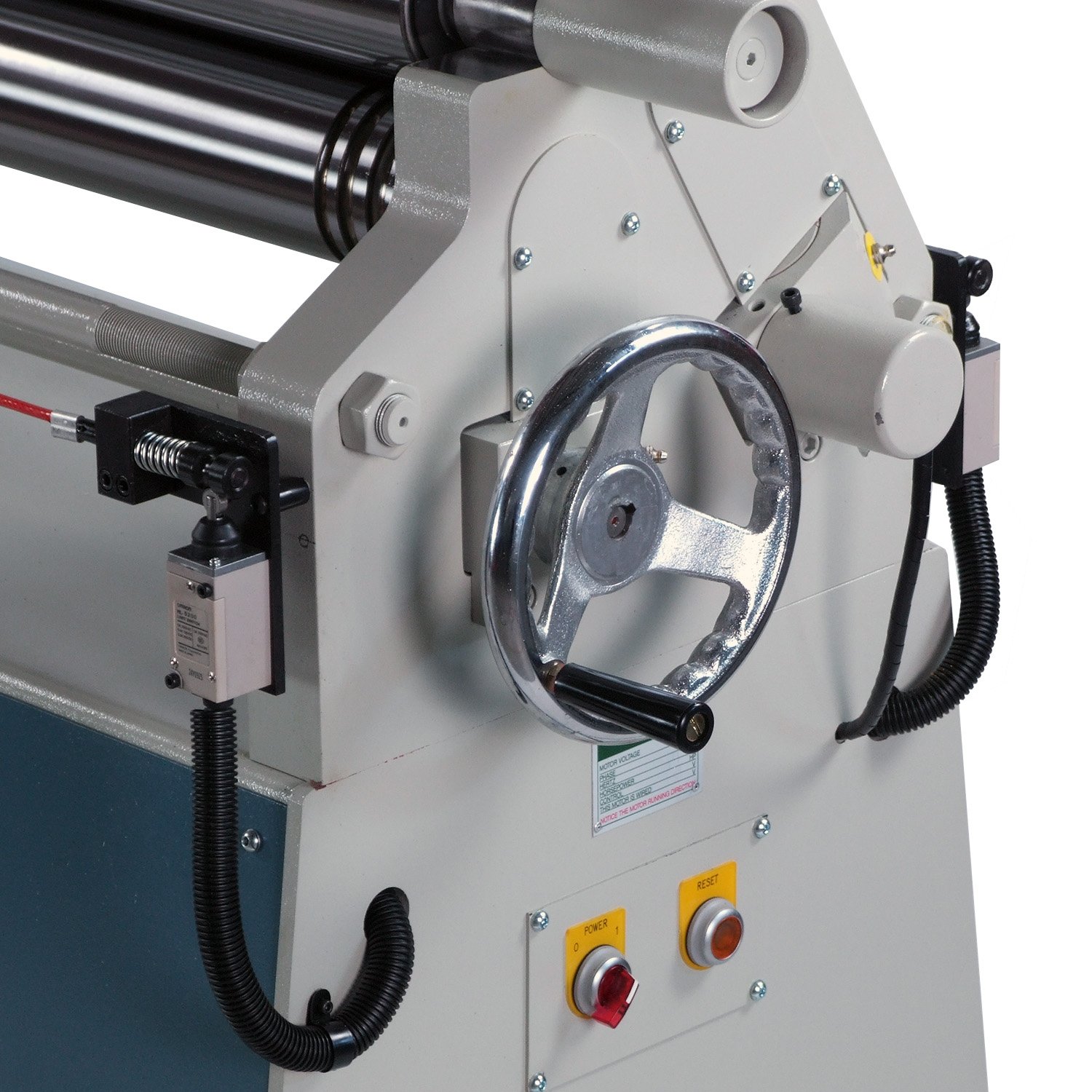

• Second hydraulic motor controls the movement of the back roll.
• Remote control pedestal includes foot pedal controls and buttons for advancing or retracting the back roll position.
• Digital readout displays back roll position so you can repeat bends easily.
• DRO is positioned at the head of the machine, giving you a good line of sight no matter where you’re standing.
• Rigid steel frame, machined to exacting tolerances, helps prevent deflection.
• Covered by a 1-year parts warranty.
• Includes lifetime technical support by phone from Baileigh’s team of reps with hands-on metalworking experience.
• Specifications
• Item Number: PR-514
• Forming Width: 60"
• Roll Adjustment Back: Hydraulic
• Motor: 2 hp
• Wire Grooves: Yes, 8, 10, 12MM
• Power: 220V / 1-phase
• Shipping Weight: 1,690 lbs.
• Shipping Dimensions: 91” x 33” x 55”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006546
• UPC: 731325411072
• Shipping Method: LTL Freight
• Weight: 1,690 lb
• Dimensions: 91 × 33 × 55 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
