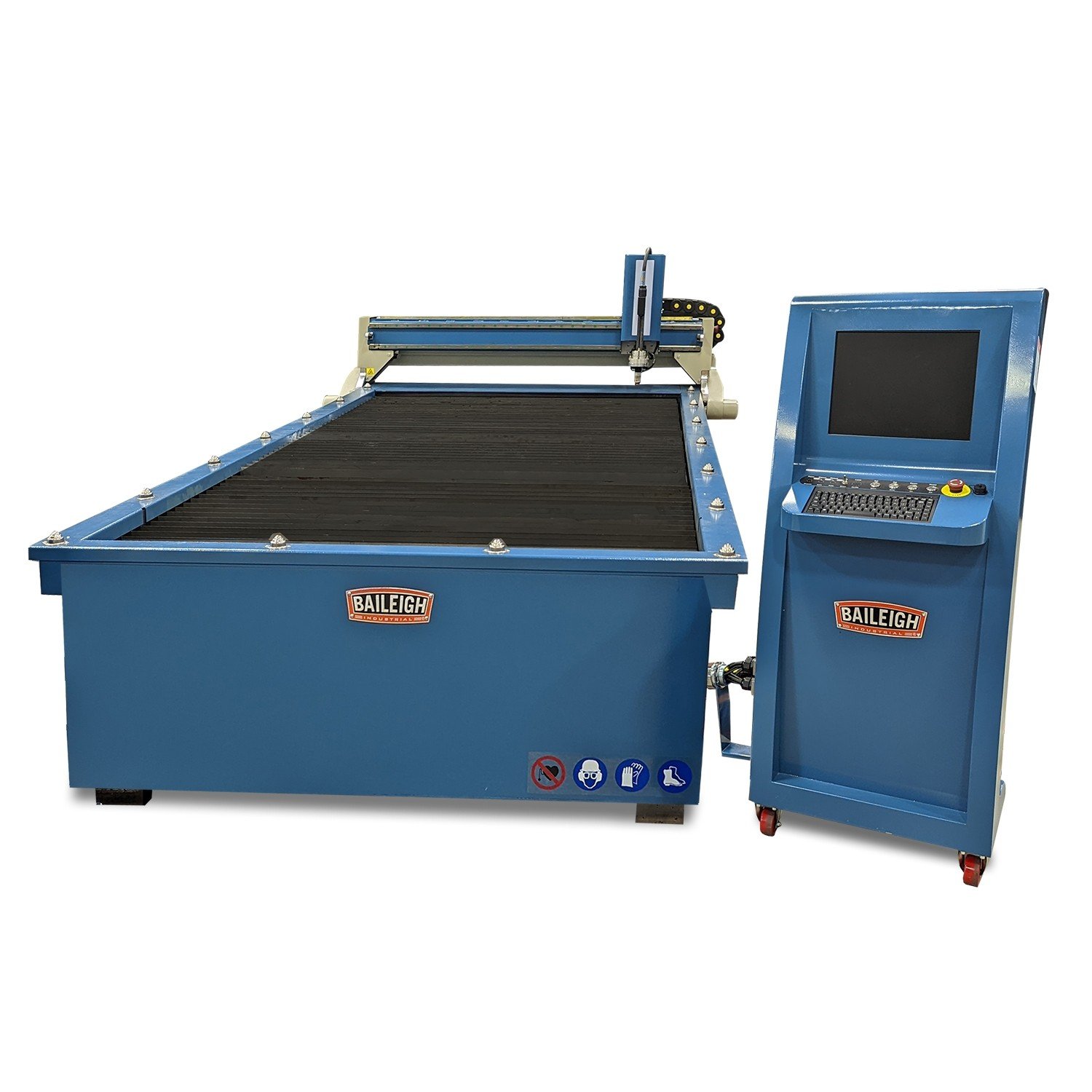

Baileigh Industrial 220V Single Phase 5ft x 10ft Downdraft CNC Plasma Table PT-105HD-V2 BA9-1231495A

Baileigh Industrial 220V Single Phase 5ft x 10ft Downdraft CNC Plasma Table PT-105HD-V2 BA9-1231495A is a Baileigh Industrial product in the CNC Plasma Tables collection.

Product Details

• Travel Speed: 315 Inches Per Minute
• Table Load Capacity: 1" Mild Steel
• Capacity: Depends on Plasma System Chosen
• Drive: Servo Motor
• Description
• Baileigh’s PT-105HD-V2 is the next generation of their plasma tables, it has the structural strength to handle 5’ x 10’ sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with the software. (Plasma torch systems are sold separately.)
• BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)
• The PT-105HD comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.
• Features
• Runs on 220-volt single-phase power.
• Control the X, Y, and Z-axis movement from the sturdy podium with a large console screen and keypad.
• Includes easy-to-learn design software that you can load into any basic PC (more details below).
• The console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.

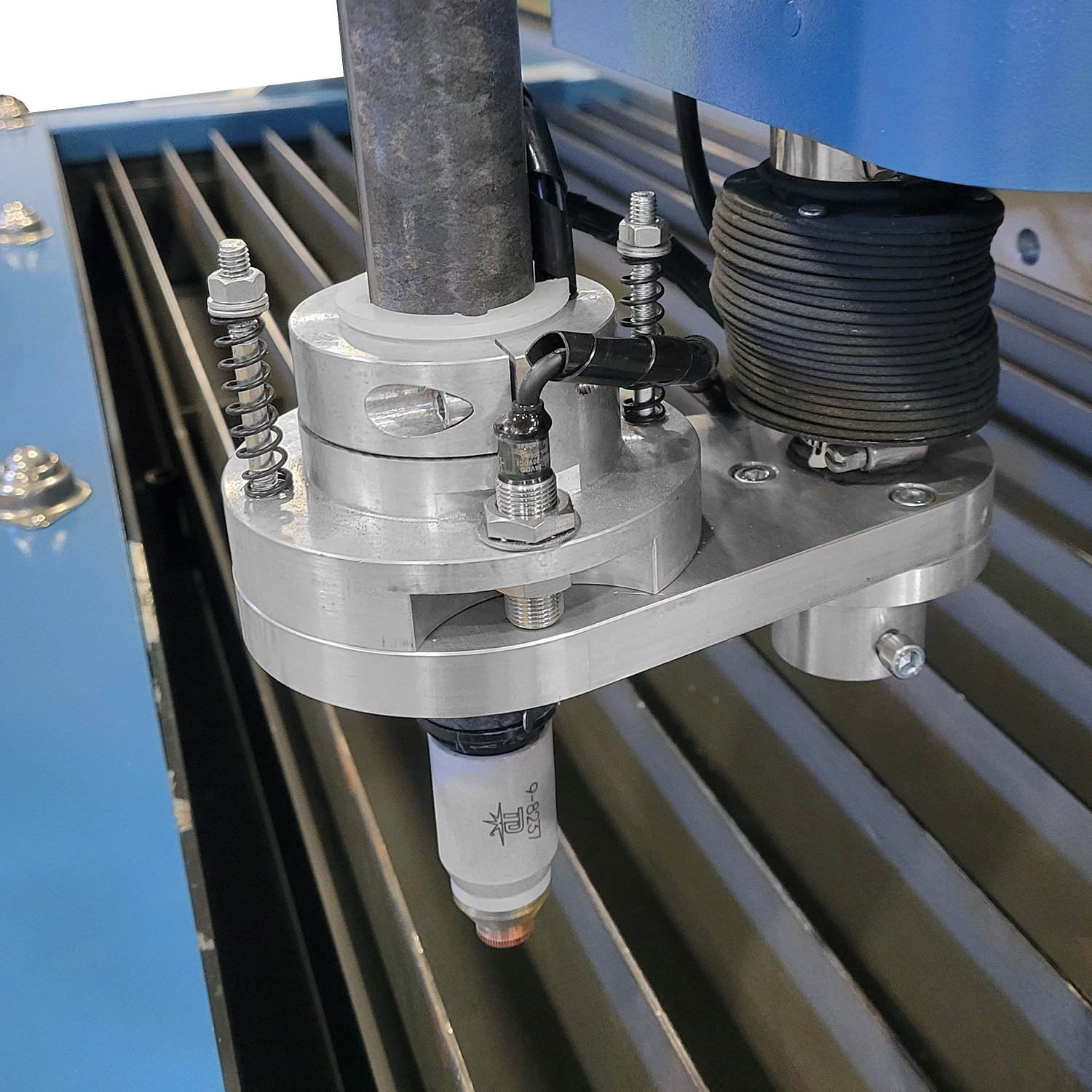

• Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials.
• Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.
• Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel.
• Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
• High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.

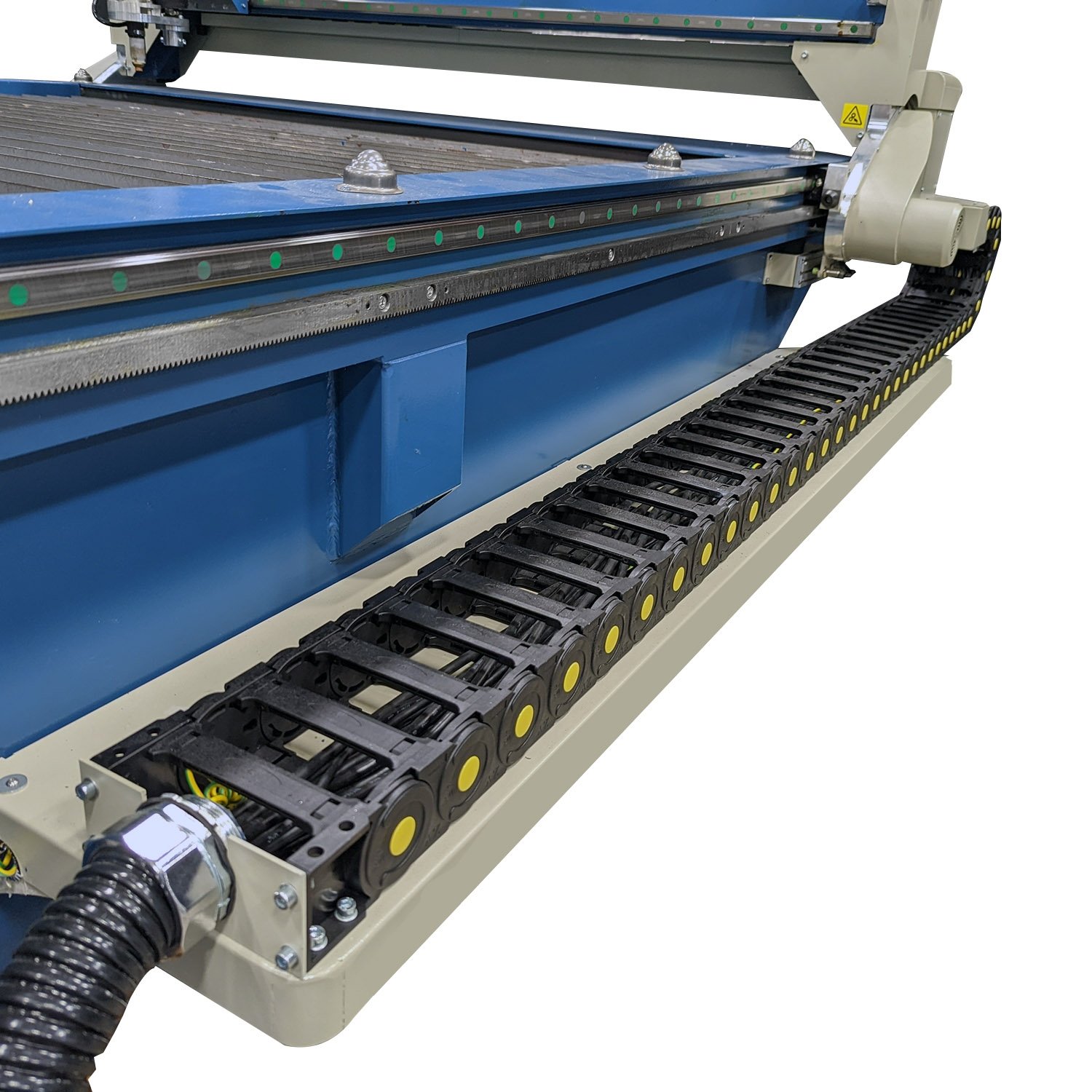

• Axes ride on heavy-duty Hiwin square rails.
• Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.
• Baileigh’s design reduces the risk of damaging the table while loading or pinching your forklift—unlike competing plasma tables with recessed work areas.
• Weigh an impressive 3520 lbs.
• Fully-welded boxed tubing construction can easily support the weight of maximum capacity material.
• Steel framework will hold its shape and stay accurate for decades, unlike many competitors’ aluminum frames, which buckle and warp under heat.
• Arrives 80% Pre-built to save you time and effort.
• The downdraft trolley follows the torch wherever it’s cutting for more focused fume extraction. It also catches your small parts so you can collect them at a convenient location.
• Covered by a 1-year parts warranty.
• You’ll benefit from lifetime technical support by phone. Call up one of Baileigh’s experienced reps whenever you need troubleshooting.
• Specifications
• Item Number: PT-105HD-V2
• Table Style: Down Draft
• Table Dimensions: 60" x 140"
• Power: 220V / 1-phase
• Shipping Weight: 4,000 lbs.
• Shipping Dimensions: 160" x 102" x 68"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1231495A
• UPC: 19907313144
• Shipping Method: Flatbed
• Weight: 4,000 lb
• Dimensions: 160 × 102 × 68 in
• Country of Origin: China
• Warranty: 1 Year (Parts)
