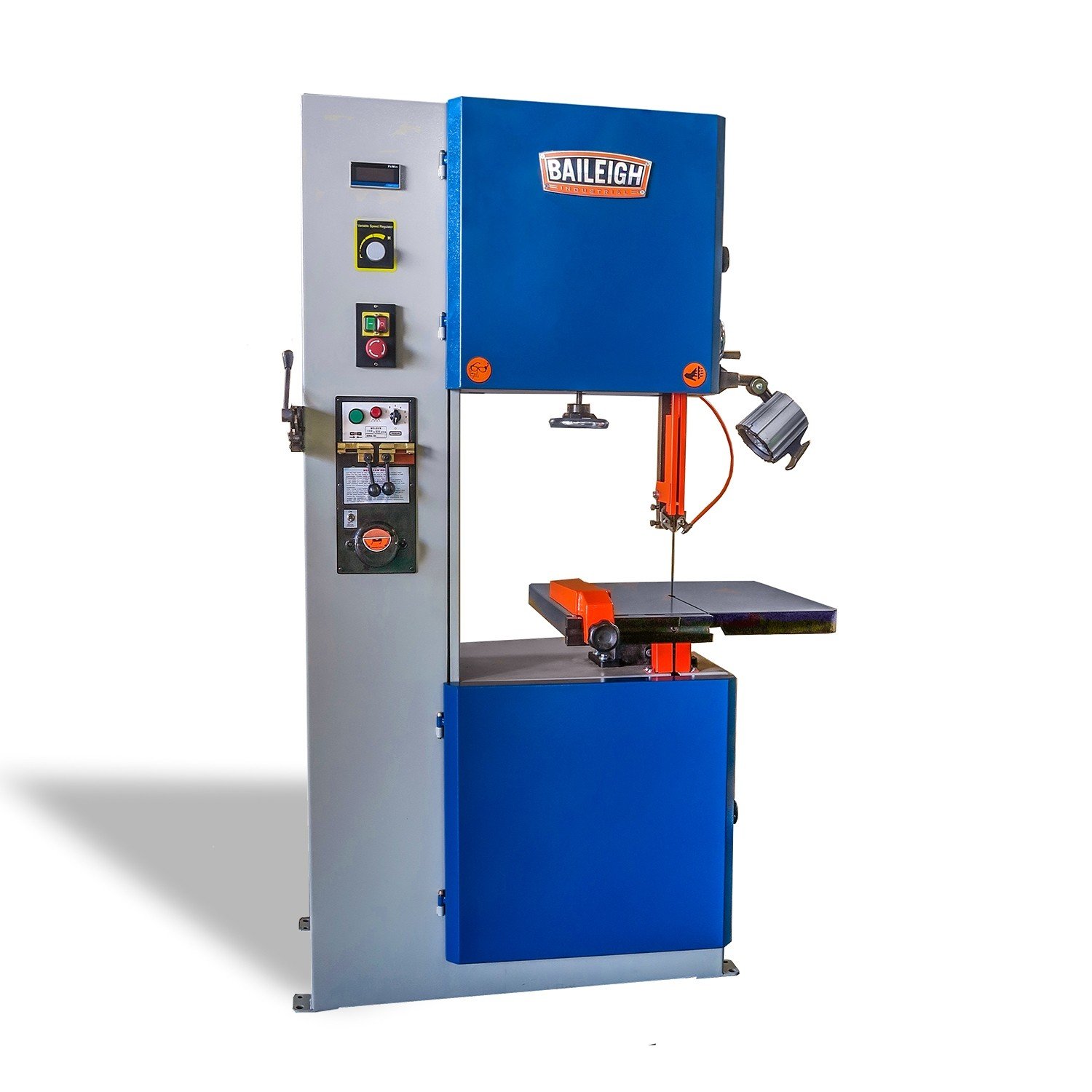

Baileigh Industrial 1HP 220V Single Phase 18” Vertical Bandsaw BSV-18VS-220-V2 BA9-1230401

Baileigh Industrial 1HP 220V Single Phase 18” Vertical Bandsaw BSV-18VS-220-V2 BA9-1230401 is a Baileigh Industrial product in the Band Saws collection.

Product Details

• Speed Control: Inverter
• Table Size: 19.68" x 21.25"
• Speeds: Variable
• Maximum Thickness: 12.9"
• Description
• Within Baileigh’s lineup of vertical bandsaws, the BSV-18VS-220-V2 variable speed band saw increases capacity and allows you to make straight and curved cuts with the vertical blade.
• Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
• Features
• 1 hp motor runs on 220-volt single-phase power.
• Wide 18" throat depth.
• 12.9” maximum cutting thickness.
• Accepts standard 1/8” to 5/8” blades.
• Cast iron table can pivot front to back and left to right.
• Includes a cast iron rip fence to make sure your cuts are straight and repeatable.
• Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• Digital read-out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.

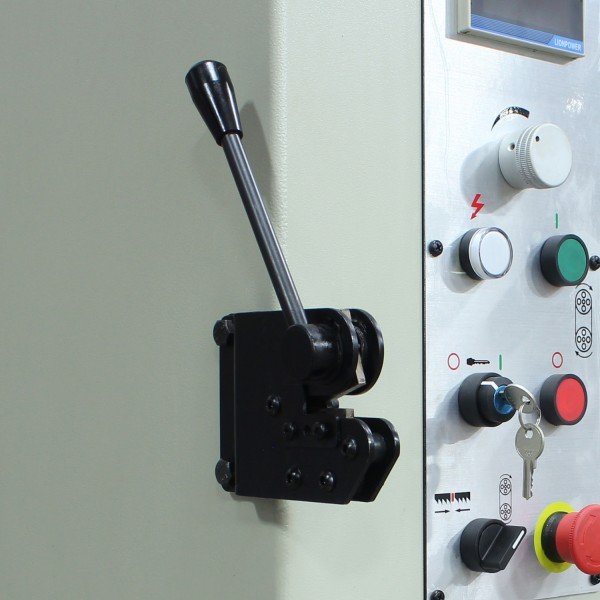

• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
• The standard fully-integrated band saw blade welder has a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• LED work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call Baileigh's team of experienced reps whenever you need help with this metal-cutting band saw.
• Specifications
• Item Number: BSV-18VS-220-V2
• Butt-Welder Capacity (Blade Width): 0.125” – 0.625”
• Slant of Table: 15° Left, 45° Right
• Motor: 1 hp
• Included Accessories: Included Accessories
• Throat Depth: 18"
• Working Height: 33.26"
• Blade Length: Range 146.45" – 147"
• Blade Speed: 90 – 1400 fpm
• Blade Thickness: 0.032"
• Power: 220 Volt Single Phase
• Shipping Weight: 807 lbs.
• Included Blade Size: 14 TPI, 1/4" wide blade included
• Shipping Dimensions (Inches): 45.67” x 30.7” x 78.7” (2000 x 1160 x 780mm)
• Machine Dimensions (L x W x H): 43.3” x 32.28” x 71.65” (1100 x 820 x 1820mm)

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1230401
• UPC: 19907010401
• Shipping Method: LTL Freight
• Weight: 807 lb
• Dimensions: 46 × 31 × 79 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
