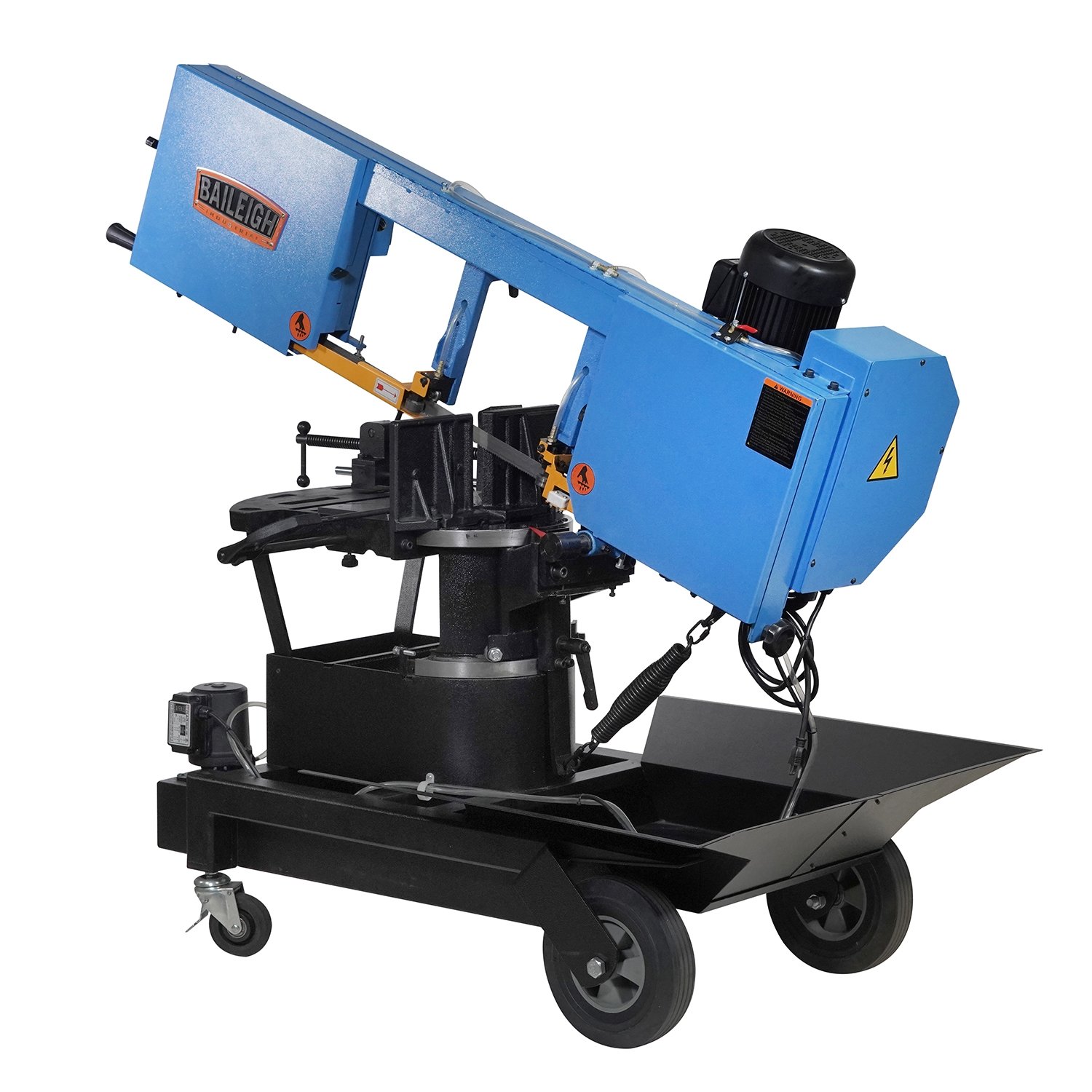

Baileigh Industrial 1HP 115V Single Phase Portable EVS Dual Mitering Bandsaw BS-10VS BA9-1232696

Baileigh Industrial 1HP 115V Single Phase Portable EVS Dual Mitering Bandsaw BS-10VS BA9-1232696 is a Baileigh Industrial product in the Band Saws collection.

Product Details

• Coolant System: Yes
• Return: Manual
• Blade Size: 1" x 0.035" x 120"
• Max. Vise Opening: 10"
• Description
• Looking for a "do-it-all" saw with large capacity at a great price? Look no further than the BS-10VS, this saw has it all; horizontal and vertical configurations, inverter driven variable speed, dual mitering, and coolant. This saw is the complete package offering efficiency, performance, and safety. See below for complete details.
• Efficiency
• An inverter allows this saw to run on 115V single phase power driven by a durable three phase motor.
• Quick locking vise is easy to adjust to clamp various material sizes.
• Large protractor for accurate and fast angle cuts
• Easily converts from Horizontal to Vertical configuration providing maximum cutting flexibility with included Vertical Support Table.
• Locking casters and robust rear wheels deliver effortless movement around the shop.
• Wire blade brush prevents chip build up in the blade guides providing cleaner cuts
• Removable chip tray for easy disposal of waste material
• Performance
• Dual mitering head produces quick & easy angle cuts to up to 45⁰ both left and right
• Electronic Variable Speed (EVS) allows for the adjustment of blade speed "on the fly" while cutting providing access to a wider range of cutting materials
• Hydraulic down feed control is easily adjustable allowing users to match feed rate to a variety of sizes & types of materials
• Integrated coolant system produces cleaner cuts and extends the life of your blade
• Safety
• Fully guarded blade can be used in both Horizontal and Vertical configuration ensuring operator safety
• CSA/CUS: Following strict guidelines and electrical requirements, this Baileigh saw is CSA/CUS certified
• Automatic shut off stops the sawing process once a cut is completed
• Baileigh covers this metal band saw with a 1-year parts warranty.
• Both the saw and replacement parts are usually in stock for fast deliveries.
• Lifetime technical support by phone lets you call Baileigh’s knowledgeable reps up whenever you need troubleshooting or advice on applications.
• Specifications
• Item Number: BS-10VS
• Motor Hp: 1
• Miter Adjustment: Swivel Head
• Miter Angle: 0 – 45° Left and Right
• Capacity Round 90°: 10" 45°: 6.5"
• 90°: 10"
• 45°: 6.5"
• Capacity Square 90°: 8" x 8" 45°: 5.5" x 5.5"
• 90°: 8" x 8"
• 45°: 5.5" x 5.5"
• Capacity Rectangle 90°: 8" x 9" 45°: 8" x 5.5"
• 90°: 8" x 9"
• 45°: 8" x 5.5"
• Table Height: Horizontal – 28.75" / Vertical – 34.875"
• Blade Guide: Carbide x Roller
• Blade Speed (fpm): 88 – 270 Variable
• Descent Control: Hydraulic
• Coolant Pump: 1/8 hp
• Drive: Belt
• Power: 115V
• Shipping Weight: 584 lbs.
• Shipping Dimensions: 61" x 30" x 46"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1232696
• UPC: 19907108405
• Shipping Method: LTL Freight
• Weight: 584 lb
• Dimensions: 61 × 30 × 46 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
