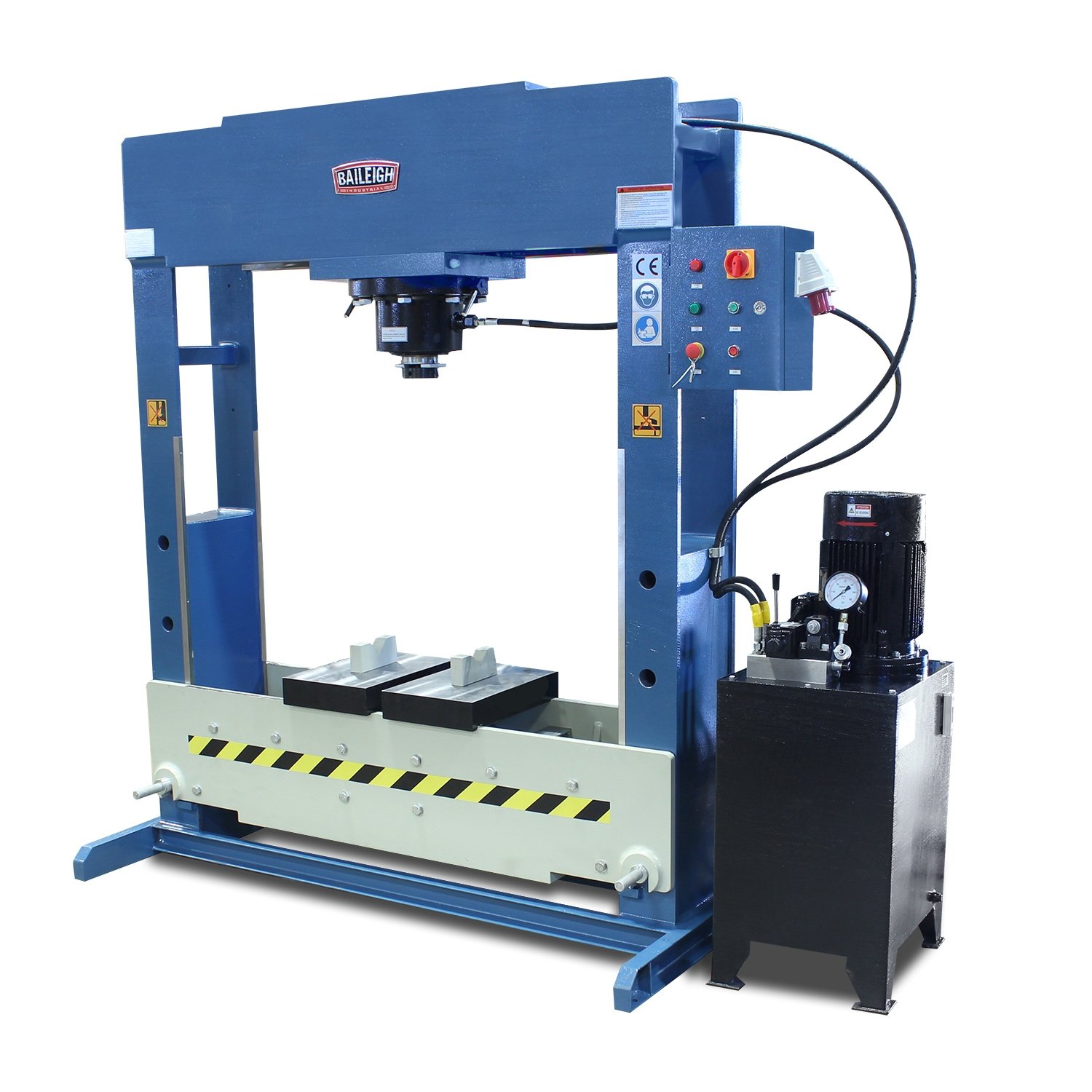

Baileigh Hydraulic Workshop Press HSP-110M-1500-HD

Baileigh Hydraulic Workshop Press HSP-110M-1500-HD is a Baileigh Industrial product in the Hydraulic Presses collection.

Product Details

• Return Speed .23" / sec.
• Maximum Pressure 4375 psi
• Motor 10 hp
• Piston Head Diameter 4.09"
• Description
• With a welded cast-steel framework, this hydraulic press is a must-have for any engineering workshop, repair firm, or technical training institutions.
• 110-ton maximum capacity.
• 59” working width.
• 8”-diameter cylinder with 13.75” stroke.
• 10 hp motor runs on 220-volt 3-phase power.
• 2 speeds and pressure regulator let you adjust to suit a given project.
• Cylinder moves left and right within the frame for off-center parts.
• Effortlessly adjust the height of the heavy work table using the hydraulic cylinder and lifting chains.
• 4.09” chrome piston with automatic return saves time after you’re finished applying pressure.
• Typically kept in stock for fast shipping.
• Delivery in accordance with CE standards.
• Baileigh covers this H-frame press with a 1-year parts warranty.
• Lifetime technical support by phone means that project troubleshooting and advice from our experienced team is just a call away.
• Recommended for: General assembly, straightening work, testing workpieces, and pressing bearings in and out.
• Specifications
• Item Number HSP-110M-1500-HD-1.0
• Pump Speed 3.9 gal/min.
• Oil Capacity 35.65 gal
• Working Speed .15" / sec.
• Working Width 59"
• Maximum Capacity 110 tons
• Cylinder Stroke 13.75"
• Cylinder Movable Yes
• Cylinder Diameter 8"
• Power 220V / 3-phase
• Shipping Weight 4240 lbs.
• Shipping Dimensions 90" x 37" x 84"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1012427
• UPC: 19907373896
• Shipping Method: LTL Freight
• Weight: 3,900 lb
• Country of Origin: Taiwan
