Baileigh Hydraulic Roll Bender R-H60-HD

Baileigh Hydraulic Roll Bender R-H60-HD is a Baileigh Industrial product in the Roll Benders collection.

Product Details

• 3.5 HP Motor
• 3 Driven Rolls
• Pipe Capacity: Size: 2.5" (sch. 40) / Min. Dia.: 48"
• 220V Single Phase
• Description
• The R-H60-HD hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.
• Features
• Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
• Bends up to 2” square x .120” wall tubing and 2.5” schedule 40 pipe, among other materials.
• All 3 rolls turn on industrial grade hydraulic motor.
• Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.
• Digital readout with programmable stop controls upward and downward roll position for easy repeatability.

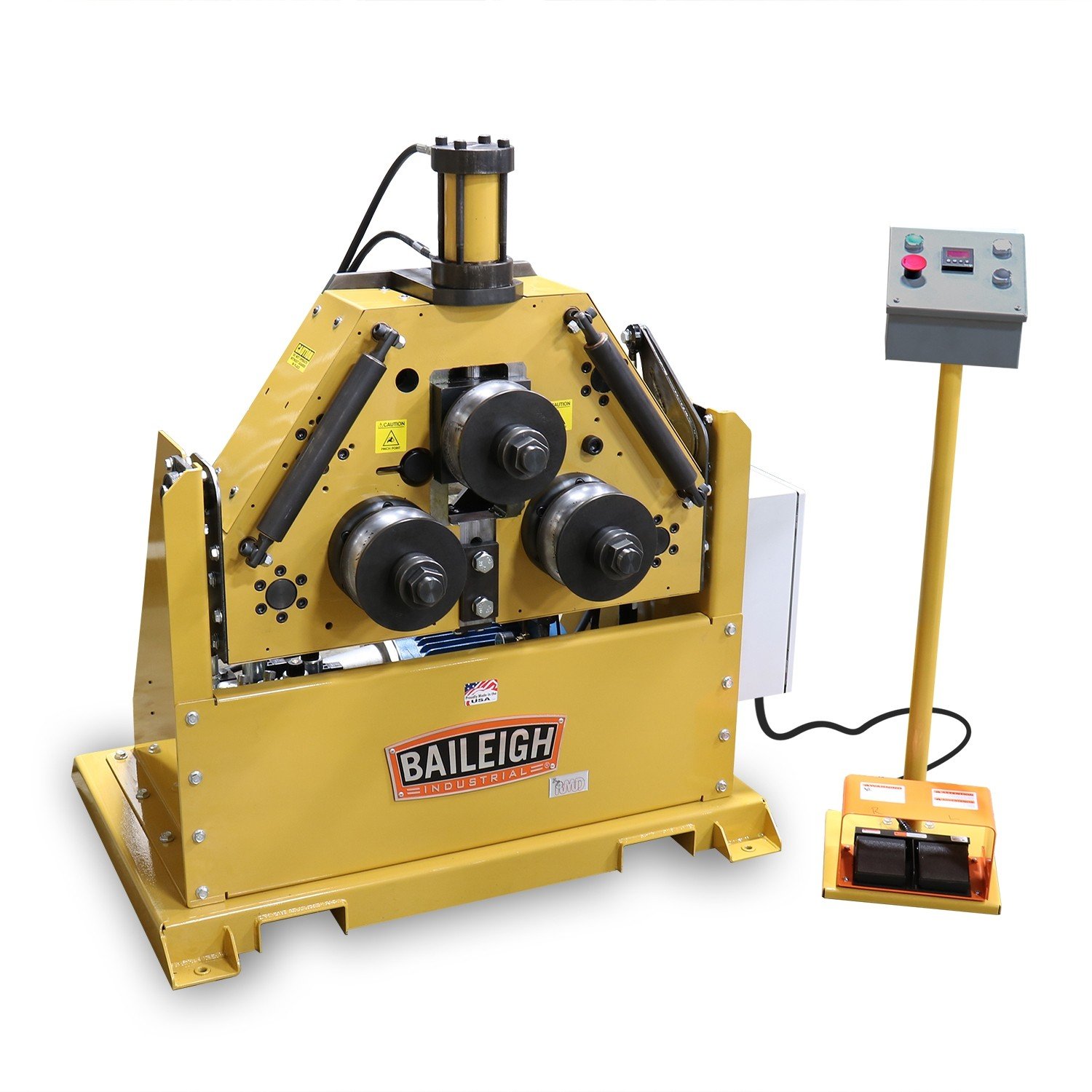

• Operator podium includes foot pedal, allowing you to stop and start the machine with ease.

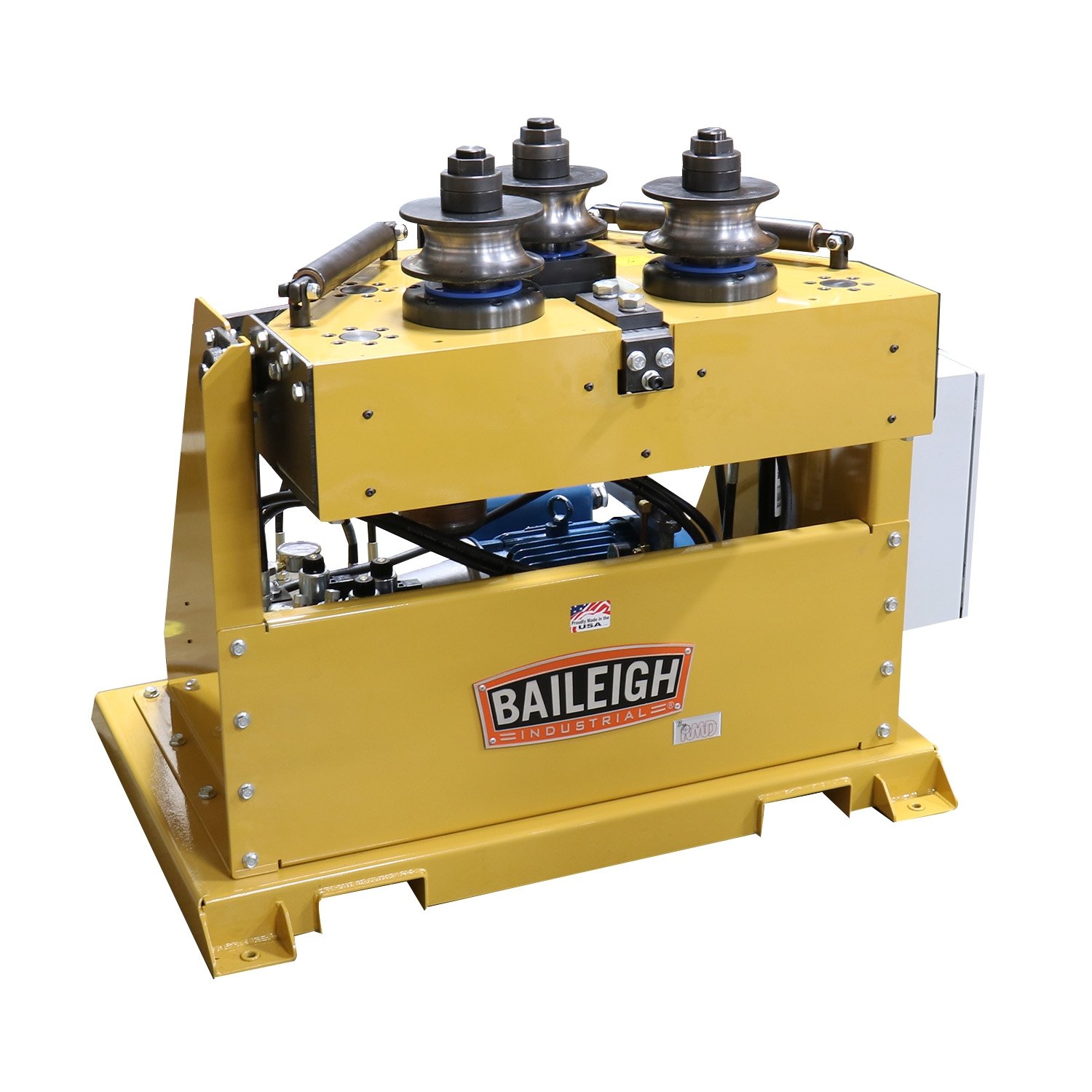

• You can safely tip this pipe bender backward into a horizontal position with its unique hydraulic tipping system when rolling larger diameters.
• Steel plate frame adds strength to the machine and minimizes flex.
• Backed by a 1-year parts warranty and lifetime technical support by phone from our knowledgeable team.
• Specifications
• Item Number: R-H60-HD
• Country of Manufacture: United States
• Motor Hp: 3.5
• Driven Rolls: 3
• Roll Adjustment: Hydraulic
• Round Tube Capacity: Size: 2.75" (.083") / Min. Dia.: 60"
• Square Tube Capacity: Size: 2" (.120") / Min. Dia.: 51"
• Solid Round Capacity: Size: 1.5" / Min. Dia. 28"
• Flat Bar Easy Way: Size: 4" (.75") / Min. Dia. 28"
• Flat Bar Hard Way: Size: 3.25" (.375")/ Min. Dia.: 32"
• Angle Iron Capacity: Size: 2" (.250")/ Min. Dia.: 36"
• Shaft Diameter: 2.36"
• Shaft Center Distance Lower Rolls: 9.562"
• Lower Roll Dia.: 5.827"
• Pinch: Single
• Power: 220V Single Phase
• Shipping Weight: 1,188 lbs.
• Material Type: All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-MDL-MERH60HD
• UPC: 19907608035
• Shipping Method: LTL Freight
• Weight: 1,475 lb
• Dimensions: 60 × 44 × 68 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
