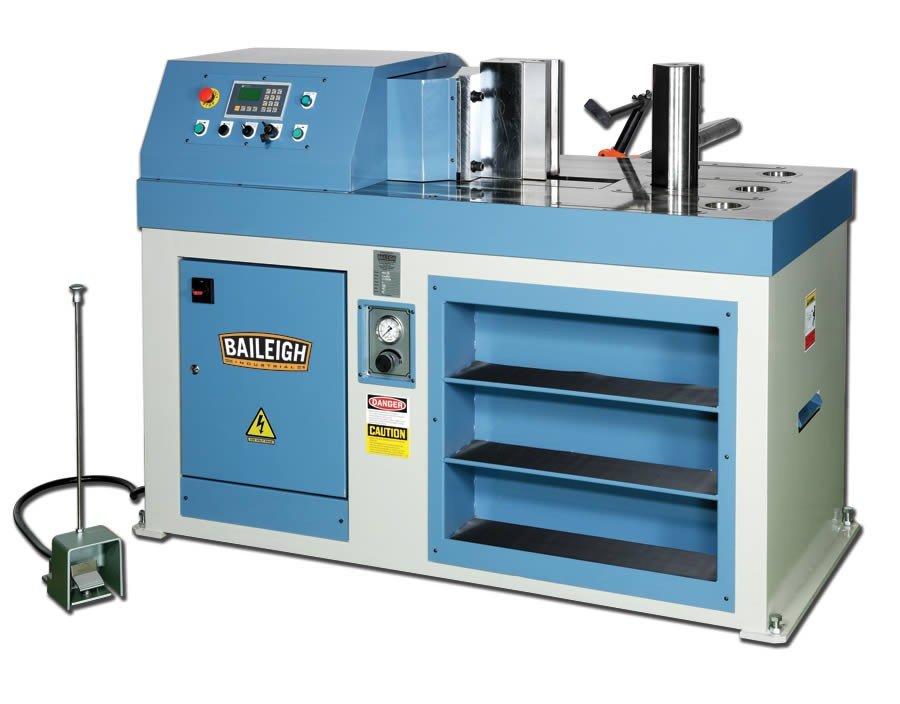

Baileigh Horizontal Press Brake HPB-78NC

Baileigh Horizontal Press Brake HPB-78NC is a Baileigh Industrial product in the Press Brakes collection.

Product Details

• The Industry's Largest Horizontal Bending Press
• 7.5 HP Motor
• Produces 78 Tons of Fabricating Force
• Custom Tooling is Available Upon Request
• A horizontal bending press is a machine that should be in every metal fabrication shop. The applications for this machine are limitless and the HPB-78NC is Baileigh Industrial’s largest horizontal bending press in its line. The HPB-78NC uses a 220 volt three phase 7.5 hp motor to power the industrial grade hydraulic system; a system hat produces 78 tons of fabricating force.
• The HPB-78NC is the perfect for any shop that currently has a vertical press brake, but has smaller jobs to do. The advantage of a horizontal bending press is when a part is bent it's lying on its side on the perfectly machines bending plate, so it's completely square when completed. This advantage alone can save time and money compared to set up on a conventional brake press for smaller parts that have to be bent perpendicular to the beam.
• All Baileigh Industrial horizontal brake presses come with a numeric control that uses electronic encoders for accurate measurement. These controllers allow for manual bends or can be run in the program mode that stores up to 99 programs with up to 10 bends each. A manual back gauge is also included for repeatability.
• Whether you need to shear, bend, punch, or even straighten the different tooling possibilities for the HBP-78NC are endless and custom tooling is available upon request.
• Return Speed: .55" / Sec.
• Motor: 7.5 HP
• Pressure: 78 Tons
• Punch Height: 11.81"
• Working Speed: .43" / Sec.
• Stroke Accuracy: + / – .002"
• Stroke Length: 13.78"
• Table Height: 37.4"
• Approach Speed: 1.69" / Sec.
• Fixture Holes: (1) @ 4.646" dia. / (3) @3.268" dia.
• Power: Manual
• Shipping Weight: 4,580 lbs.
• Shipping Dimensions: 81" x 38" x 61"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1004720
• UPC: 731325407297
• Shipping Method: LTL Freight
• Weight: 4,580 lb
• Country of Origin: Taiwan
