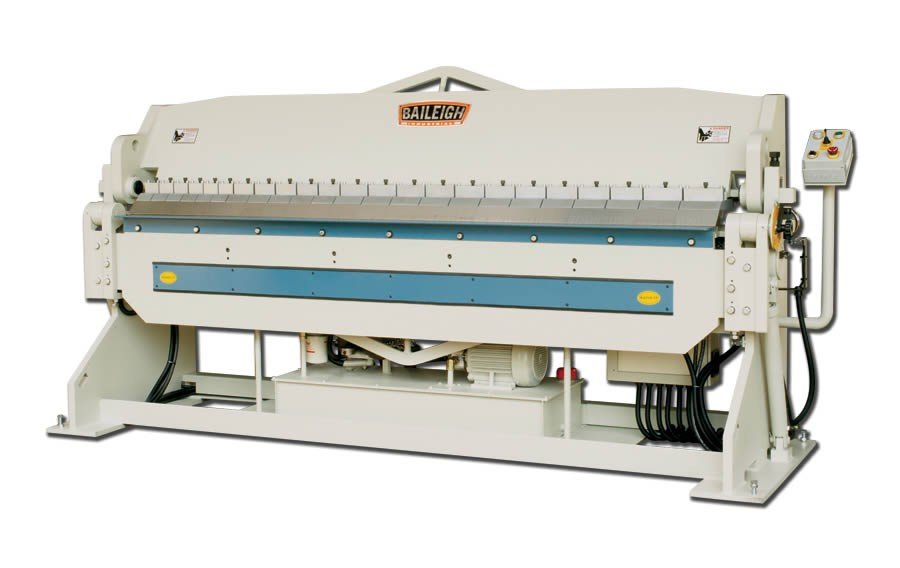

Baileigh Heavy Duty Hydraulic Box and Pan (Finger) Brake BB-9610H

Baileigh Heavy Duty Hydraulic Box and Pan (Finger) Brake BB-9610H is a Baileigh Industrial product in the Sheet Metal Brakes collection.

Product Details

• Heavy duty
• Programmable bend angle with automatic return
• Hydraulic clamp, bend, and return
• Adjustable beam
• Need to bend 8 foot sheets of 10 gauge mild steel? The BB-9610H hydraulic finger brake from Baileigh Industrial is the right machine for you. The BB-9610H will do a maximum of 10 gauge mild steel sheet metal at a full 8 feet, but it is not just a brake for heavier gauge, it will just a easily handle lighter gauges as well because of its unique automatic crowning compensation feature that helps produce a uniform bend when bending at the full 10 gauge thickness and automatically adjust when doing lighter gauges. This finger brake has 6-3", 4-4", 10-5" and 2-6" hardened three piece fingers that will allow for many different size boxes up to a 6" box depth.
• The BB-9610H box and pan brake’s frame is built with a fully welded beam, bending leaf and is further stabilized with truss rod support that helps minimize any deflection when bending at full capacity, an important item when bending 10 gauge mild steel.
• The BB-9610H hydraulic finger brake uses industrial grade hydraulics, powered by a powerful 5 hp motor that operates on 220V 3 phase power, to lift the bending leaf. The BB-9610H can be operated in manual or semi-automatic mode with the use of a foot pedal and a toggle joystick. To handle the clamping pressure required to bend 10 gauge mild steel, the beam is lifted and clamped via an electric motor. The BB-9610H has a 1" beam adjustment and is capable of bending to a maximum of 135° via a programmable stop bend adjustment making this a very good production machine.
• Motor: 5 hp
• Min Reverse Bend: .984"
• Thickness (SS): 10 ga. (12 ga.)
• Box Depth: 6"
• Beam Adjustment: 1"
• Bend Angle: 0 – 135°
• Finger Sizes: 3" – 4" – 5" – 6"
• Power: 220V / 3-phase
• Shipping Weight: 5,940 lbs.
• Length: 96"
• Shipping Dimensions: 134" x 44" x 71"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1021003
• UPC: 731325489910
• Shipping Method: Flatbed
• Weight: 5,640 lb
• Country of Origin: Taiwan
