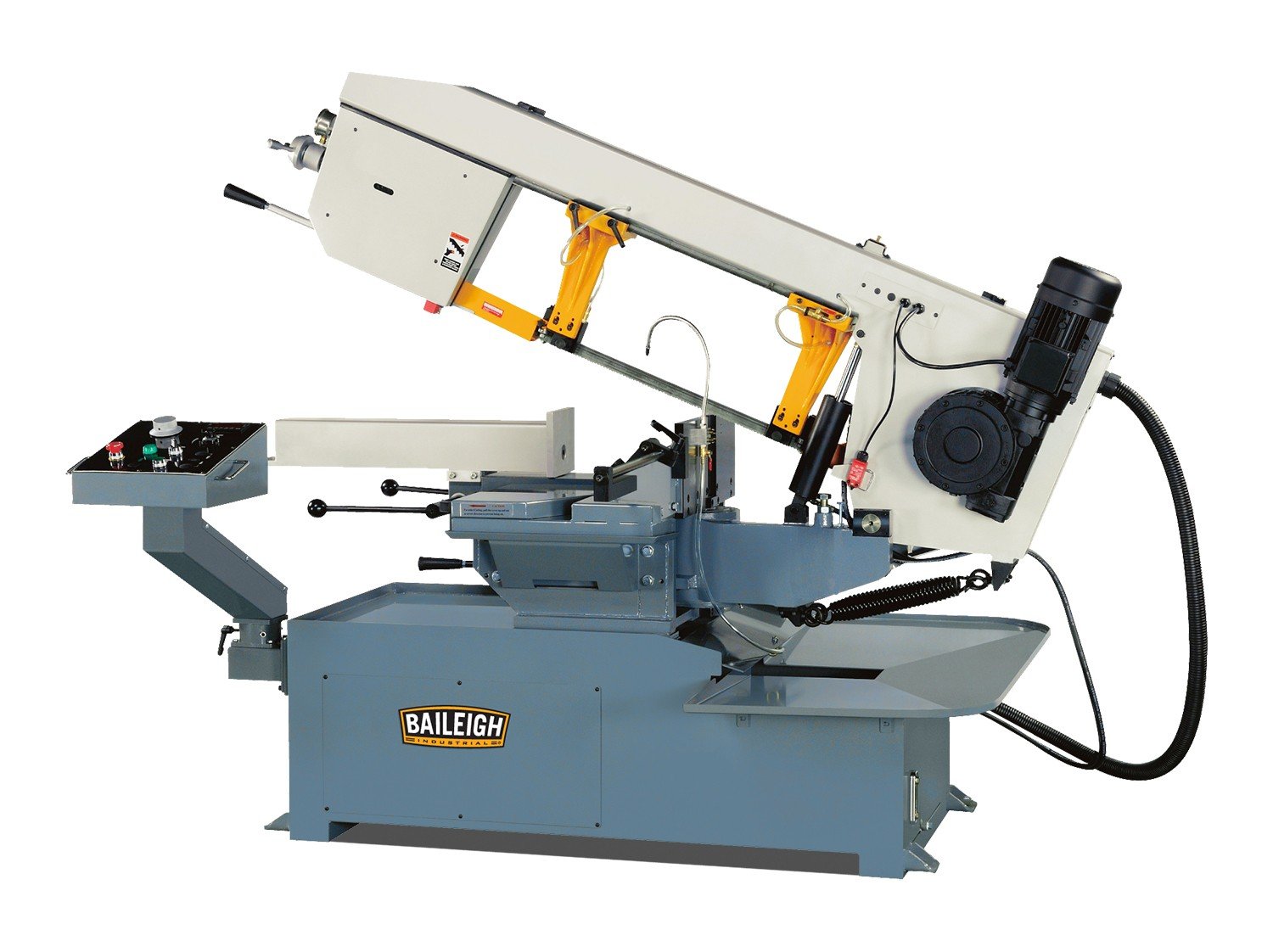

Baileigh Dual Mitering Band Saw BS-20M-DM

Baileigh Dual Mitering Band Saw BS-20M-DM is a Baileigh Industrial product in the Band Saws collection.

Product Details

• Cuts Metal and More
• 1-1/4" Blade Standard
• Dual Direction Mitering Vise
• Inverter Driven Variable Speed
• Do you need to replace your current band saw because your shop has out grown it or just looking for a new one to increase production? Then look at the BS-20M-DM dual mitering bandsaw from Baileigh Industrial. The BS-20M-DM has evolved form the original BS-20M to what you see here, an easy to use dual mitering band saw. The BS-20M-DM is a dual mitering saw with capabilities to miter 45° left and 60° right with just flick of the wrist and a push or pull of the head. The BS-20M-DM band saw also incorporates a heavy duty in feed table and out feed table to help save strain on the operator.
• The BS-20M-DM is available in 220V or 440V three phase (440v special order) and uses a 1-1/4" blade for speed and accuracy. This is a big improvement over the original. Baileigh Industrial has changed the drive system on the BS-20M-DM, it now uses an inverter drive that allows for infinite blade speed adjustments from 69 to 306 feet per minute. The inverter along with hydraulic descent pressure allows the operator to select the proper speed to increase cut quality and blade life.
• The Baileigh Industrial BS-20M-DM dual mitering bandsaw is built to the highest quality standards on the market and will offer any fabrication or machine shop decades of precision sawing.
• Return: Manual
• Miter Adjustment: Dual Miter Swivel Head
• Miter Angle: 0 – 60º , 45ºL
• Motor: 3 Hp
• Table Height: 30.5"
• Capacity Rectangular 90 x 45 x 60: 13" x 18" x 13" x 11" x 10" x 6.3"
• Capcity Rectangle 90º: 13" x 18" / 13" x 10.6 / 12.4" x 7.7"
• Capacity Round 90º x 45º x 60º: 13" x 12" x 8.5"
• Capacity Square 90º x 45º x 60º: 13" x 12" x 8.5"
• Blade Guide: Carbide / Roller
• Blade Size (H x W x L): 1.25" x .042" x 162.6"
• Blade Speed (fpm): 60 – 306 Inverter Driven
• Descent Control: Hydraulic
• Drive: Inverter Direct
• Power: 220V / 60Hz, 3-Phase
• Shipping Weight: 2,156 lbs.
• Shipping Dimensions: 88.6" x 35.5" x 61.4"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1001292
• UPC: 731325396669
• Shipping Method: LTL Freight
• Weight: 2,180 lb
• Country of Origin: Taiwan
