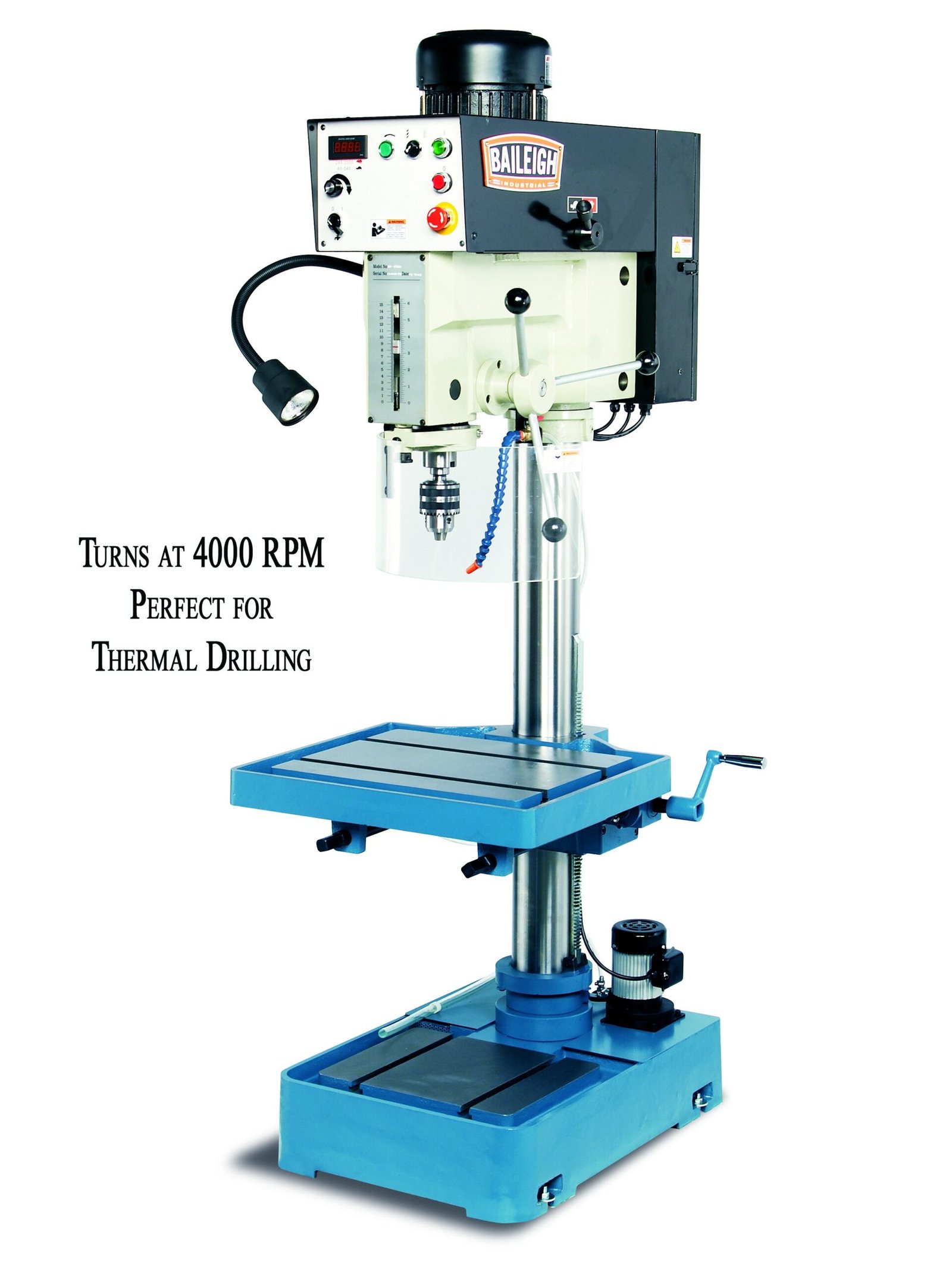

Baileigh Drill Press Variable Speed DP-1250VS-HS

Baileigh Drill Press Variable Speed DP-1250VS-HS is a Baileigh Industrial product in the Drill Presses collection.

Product Details

• 1/8HP Coolant Motor
• 1.5" Drill Capacity
• 85-4000rpm Spindle Speed
• Tapping Capacity 3/4"
• The DP-1250VS-HS is a high speed version of the DP-1250VS from Baileigh Industrial. The reason for the high speed is to allow any shop to enjoy the process of thermal friction drilling. This is a unique process in which a bit actually melts through the material and creates “walls" that can then be tapped. But in order to use this process, the bit must be turning more than 3000 rpm. This is where the DP-1250VS-HS high speed drill press comes in.
• The DP-1250VS-HS shares all the exact same features as its brother and would be perfect for anybody looking to upgrade their current drill. The DP-1250VS-HS from Baileigh Industrial is a 20" drill press that has a capacity of 1-1/4" mild steel. It uses 220 volt single phase power to run a Delta® inverter. The inverter regulates the amount of power and rpms to the spindle. Using an inverter to drive its massive mt4 spindle gives the DP-1250VS-HS the ability to set rpm to an exact speed; from 0 to 4000. It also has a reverse function and can tap as well.
• The DP-1250VS-HS uses a heavy duty cast iron base that has a coolant system built right in. The DP-1250VS-HS also has a 4-1/2" wide column that was designed to minimize the flex. The work table has been machined, polished and has t-slots for your work holding device.
• Motor: 2HP
• Quill Diameter: 2.95"
• Spindle Nose To Table: 36.41"
• Spindle Nose To Base: 48.22"
• Spindle Speed High: 245-4000rpm
• Spindle Low Speed: 85-540rpm
• Spindle Taper: MT 4
• Table Slot: .625"
• Motor Coolant: 1/8HP
• Power: 220V/Single Phase
• Shipping Weight: 847lbs
• Swing: 20.8"
• Drill Capacity: 1.5"
• Spindle Travel: 5.9"
• Column Diameter: 4.52"
• Base Dimensions LxW: 27"x19"
• Shipping Dimensions: 40"x25"x83"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1002871
• UPC: 731325404357
• Shipping Method: LTL Freight
• Weight: 706 lb
• Country of Origin: Taiwan
