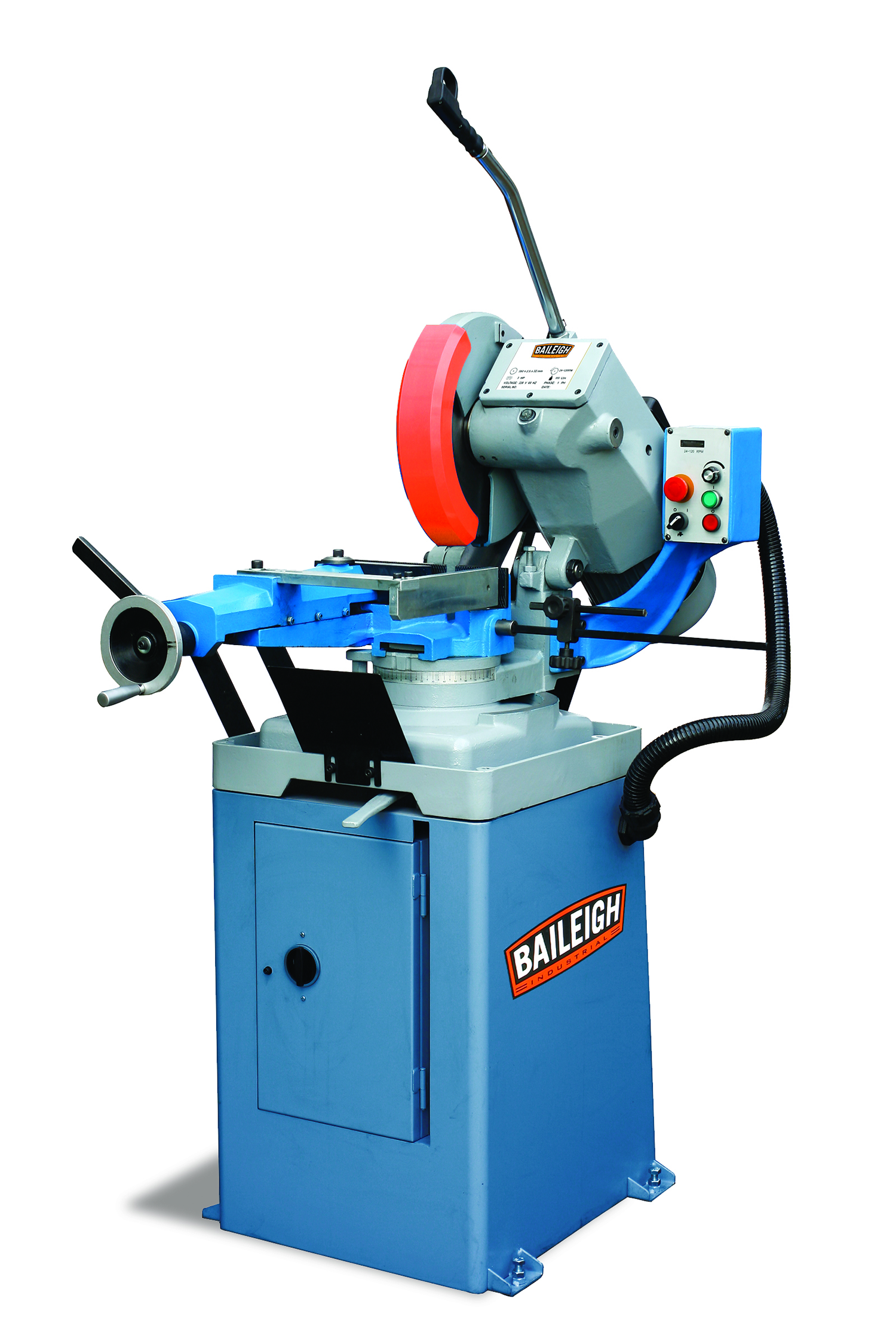

Baileigh Cold Saw CS-350EU

Baileigh Cold Saw CS-350EU is a Baileigh Industrial product in the Cold Saws collection.

Product Details

• 14" Blade
• Variable speed, inverter driven with digital readout for rpm
• Miters 45º Left & Right
• 4.7" Round Tube Capacity at 90º
• Baileigh Industrials revolutionary new CS-350EU cold saw will change the way you think about cold saws. The CS-350EU is a unique 14" circular cold saw features a true inverter that drives the motor. This inverter allows the blade speed to be adjusted from 24 to 120 RPM. This range of RPM covers most of the cutting application that this cold saw will encounter. The CS-350EU cold saw is a powerful machine that can cut through solids, tubing, or pipe. The head has a strong motor coupled to a direct drive gear box that allows the blade to cut through the material chatter free which increases blade life. The CS-350EU cold saw has a thick cast iron base making it very rigid that is mounted on a steel base. The Baileigh Industrial CS-350EU circular cold saw can miter 45 degrees to the left and 45 degrees to the right with the ability to slot perpendicular to the material as well. The vise has a taper lock system that helps increase production when a lot of cutting is required. The vise clamps on both sides of the cut increasing blade life. The vise jaws are serrated for maximum hold. Like all other Baileigh circular cold saws, the CS-350EU comes with a powerful coolant pump that cools the blade and washes chips away. This is the perfect machine for any fabrication shop and best yet it requires just 220V, single phase, 60 hertz power. This machine offers great value for a small price. The CS-350EU is almost always in stock for fast deliveries.
• Max. Blade Diameter: 14"
• Operation: Manual
• Head Miter: 90º Slotting, 45º Left/Right
• Round Solid at 45º: 3"
• Square Tube at 45º: 3.5"x3.5"
• Round Tube at 45º: 4"
• Rectangle Tube at 45º: 3.5" x 2.8"
• Round Solid at 90º: 3.5"
• Rectangle Tube at 90º: 6.3" x 3.5"
• Square Tube at 90º: 4"x4"
• Round Tube at 90º: 4.7"
• Coolant System: Yes
• Vise Style: Single Action with Cam lock
• Max. Vice Opening: 4.7"
• Head Style: Pivot
• Arbor Size: 1.26"
• Motor: 3HP
• Capacity Round 45º: 4"
• Blade Speed: 24-120 rpm
• Power: 220V, 1PH
• Shipping Weight: 550Ibs
• Shipping Dimensions: 60"x44"x48"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1002535
• UPC: 731325402827
• Shipping Method: LTL Freight
• Weight: 639 lb
• Country of Origin: Taiwan
