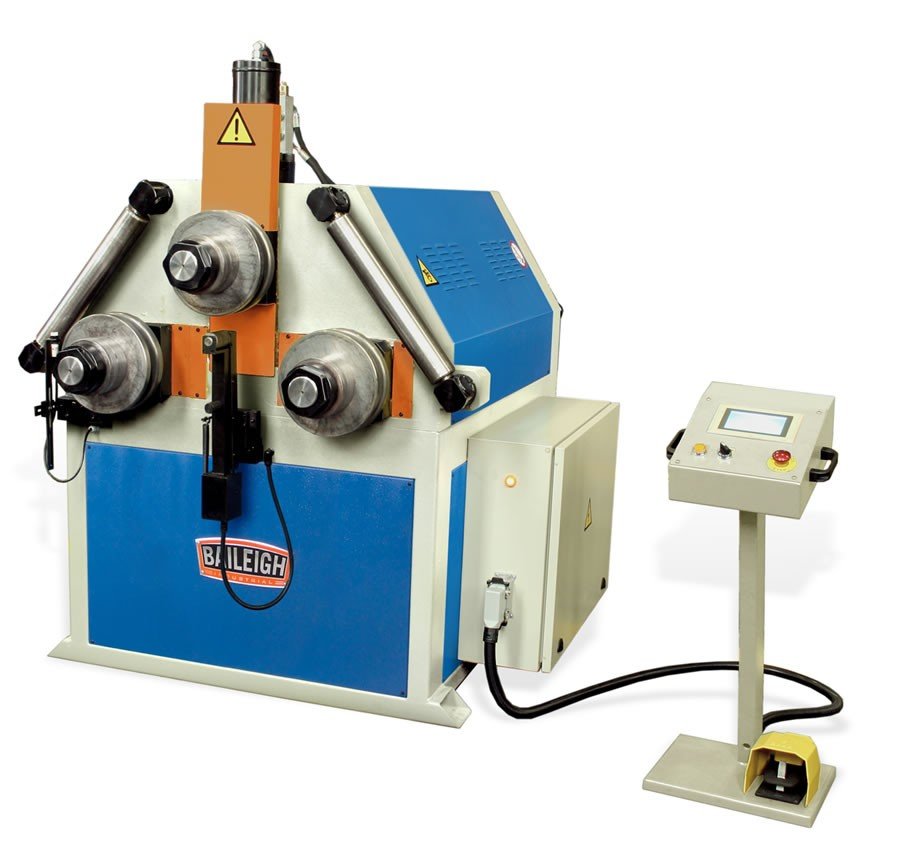

Baileigh CNC Roll Bender R-CNC120

Baileigh CNC Roll Bender R-CNC120 is a Baileigh Industrial product in the Roll Benders collection.

Product Details

• Power 220V/3-Phase
• Digital Readout
• Three Driven Rolls
• Foot Pedal Controlled
• Description
• This computer-controlled, double-pinch tubing roller with 3 driven rolls allows you to execute complex bends with the press of a few buttons.
• Runs on 220-volt 3-phase power.
• Maximum capacity of 4.75” tube.
• Variable-speed rolling—4 speeds on top roll, 2 speeds on bottom roll rotation—facilitates smooth transition between bend parts.
• Top roll can switch between progressive (moving profile) and direct (profile stopped) bending.
• Hydraulically adjustable top roll moves to fit your application’s profile.
• 75 different profile calibrations let you bend multiple radii on a single section.
• Overload-protected inverter drive lets you shift machine speed from 0 to 8 rpm, cutting down on machine wear and tear.
• Touchscreen operator podium with attached foot pedal allows for easy programming.
• Internal memory holds 40 programs of 24 segments per program, cutting down delays on repeat parts.
• Heavy electro-welded steel construction minimizes flex and helps the R-CNC120 to bend at full capacity for years.
• Baileigh backs this CNC tube bender with a 1-year parts warranty and lifetime technical support by phone.
• Use this machine for: Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.
• Why choose the R-CNC120 over comparable machines?
• Double-pinch side-to-side adjustment on bottom rolls reduces the wasteful length of straight material at the ends of each bend that you get on a standard ring roller.
• Structural-grade steel plate frame supporting the sharp accuracy of CNC production.
• You’ll find our integrated software easy to operate and program, unlike the complicated setups on many CNC roll benders.
• Handheld calibration device and cutting-edge CNC technology can automatically produce the desired bend radius without manual adjustment.
• With Baileigh’s world-class after-sale support, expert troubleshooting and free application advice are always just a phone call away.
• Specifications
• Item Number R-CNC120
• Country of Manufacture Portugal
• Roll Adjustment Hydraulic
• Pipe Capacity Size: 4" (sch. 40) / Min. Dia.: 72"
• Round Tube Capacity Size: 4" (.1875")
• Square Tube Capacity Size: 4" (.1875")
• Flat Bar Easy Way Size: 5.5" (.1.1875") / Min. Dia. 44"
• Flat Bar Hard Way Size: 5" ( .75") / Min. Dia.: 47"
• Angle Iron Capacity Size: 3.15" (.375") / Min. Dia.:40"
• Shaft Diameter 3.14”
• Pinch Single with Interchangeable Bottom Rolls
• *Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
• Dimensions L x W x H 64" x 49" x 65"
• *All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.*

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006758
• UPC: 19907596509
• Shipping Method: Flatbed
• Weight: 3,540 lb
• Dimensions: 64 × 49 × 65 in
• Country of Origin: Portugal
