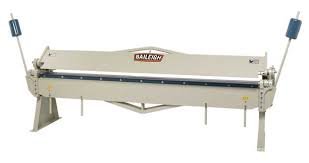

Baileigh Box and Pan Brake BB-12016

Baileigh Box and Pan Brake BB-12016 is a Baileigh Industrial product in the Sheet Metal Brakes collection.

Product Details

• Bend angle indicator and stop rod for repeatability
• Adjustable counterweights for apron lift assist
• Adjustable beam for varying sheet thickness
• 2-piece hardened finger assortment: 6 – 3", 4 – 4", 10 – 5", 6 – 6"
• The BB-12016 manually operated box and pan brake from Baileigh Industrial is perfect for HVAC shops or fabricating shops that have to bend full 4 x 8 sheets of light gauge sheet metal. This heavy duty sheet metal brake is built to the same standards as our other finger brakes but is specially designed to make bending 16gauge and lighter sheet metal easier. The fully welded frame and support rods help keep alignment during the bending process even at full capacity. Unlike other box and pan brakes on the market the bending leaf shafts on the BB-12016 ride in precision lube for life bearings allowing for better bend tolerances and less operator fatigue.
• The BB-12016 sheet metal brake comes standard with 26 individual fingers of varying lengths to allow you to make just about any size box or pan. The box depth on the BB-12016 finger brake is an impressive 6". Two large counter weights are also included to help with the bending process.
• The BB-12016 is almost always in stock for fast deliveries.
• Min. Reverse Bend: .625"
• Thickness (SS): 16 ga. (20 ga.)
• Box Depth: 6"
• Beam Adjustment: 1"
• Bend Angle: 0 – 135º
• Finger Sizes: 3" – 4" – 5" – 6"
• Power: Manual
• Shipping Weight: 3,190 lbs.
• Length: 120"
• Shipping Dimensions: 146" x 34" x 46"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1000380
• UPC: 731325392104
• Shipping Method: LTL Freight
• Weight: 3,500 lb
• Country of Origin: Taiwan
