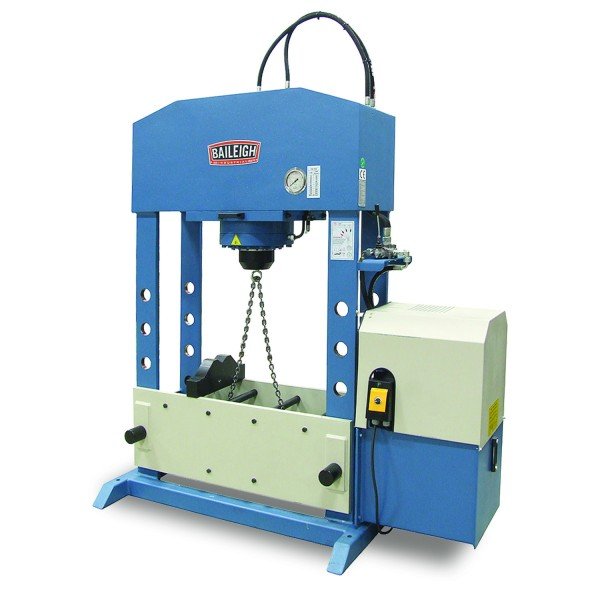

Baileigh 176 Ton Hydraulic Work Shop Press HSP-176M-HD

Baileigh 176 Ton Hydraulic Work Shop Press HSP-176M-HD is a Baileigh Industrial product in the Hydraulic Presses collection.

Product Details

• Maximum Capacity: 176 tons
• Return Speed: .5" / sec.
• Working Width: 43.3"
• Cylinder Stroke: 15.75"
• Description
• Need a lot of tonnage? Our HSP-176M hydraulic press provides 176 tons of force. Its fully-welded .375” steel plate framework can handle maximum capacity pressure every day.
• 43.3” working width.
• 12.75" diameter cylinder with 15.75” stroke.
• Industrial-grade hydraulic system.
• 4 hp motor runs on 220-volt 3-phase power.
• 2 hydraulic speeds—rapid advance and slower approach—let you choose the right speed for your application.
• You can operate the ram in automatic (motorized) or manual mode (hand pump) for even more control.
• Cylinder can move left or right within the framework, perfect for off-center parts and applications.
• 5.90” chrome piston automatically returns to the top after you’re done pressing.
• Worktable includes 2 sets of supports made from 3” round stock to keep the press as stable as possible.
• Motorized table height adjustment: lifting chains on attach to the ram, so the hydraulic system does all the work. No strain on your back!
• Includes a set of V-blocks.
• Baileigh backs this hydraulic H-frame press with a 1-year parts warranty, as well as lifetime technical support by phone.
• Specifications
• Item Number: HSP-176M-HD
• Country of Manufacture: Turkey
• Maximum Pressure: 4104 psi
• Motor: 4 hp
• Piston Head Diameter: 5.90"
• Pump Speed: 1.92 / 7.50 gal/min.
• Oil Capacity: 7.92 gal
• Working Speed: .090" / sec.
• Lowering Speed: .350" / sec.
• Cylinder Movable: Yes
• Cylinder Diameter: 12.75"
• RPM: 3000
• Power: 220V / 3-phase
• Shipping Weight: 3,465 lbs.
• Shipping Dimensions: 78" x 55" x 18"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1012428
• UPC: 19907511144
• Shipping Method: LTL Freight
• Weight: 3,465 lb
• Country of Origin: Turkey
