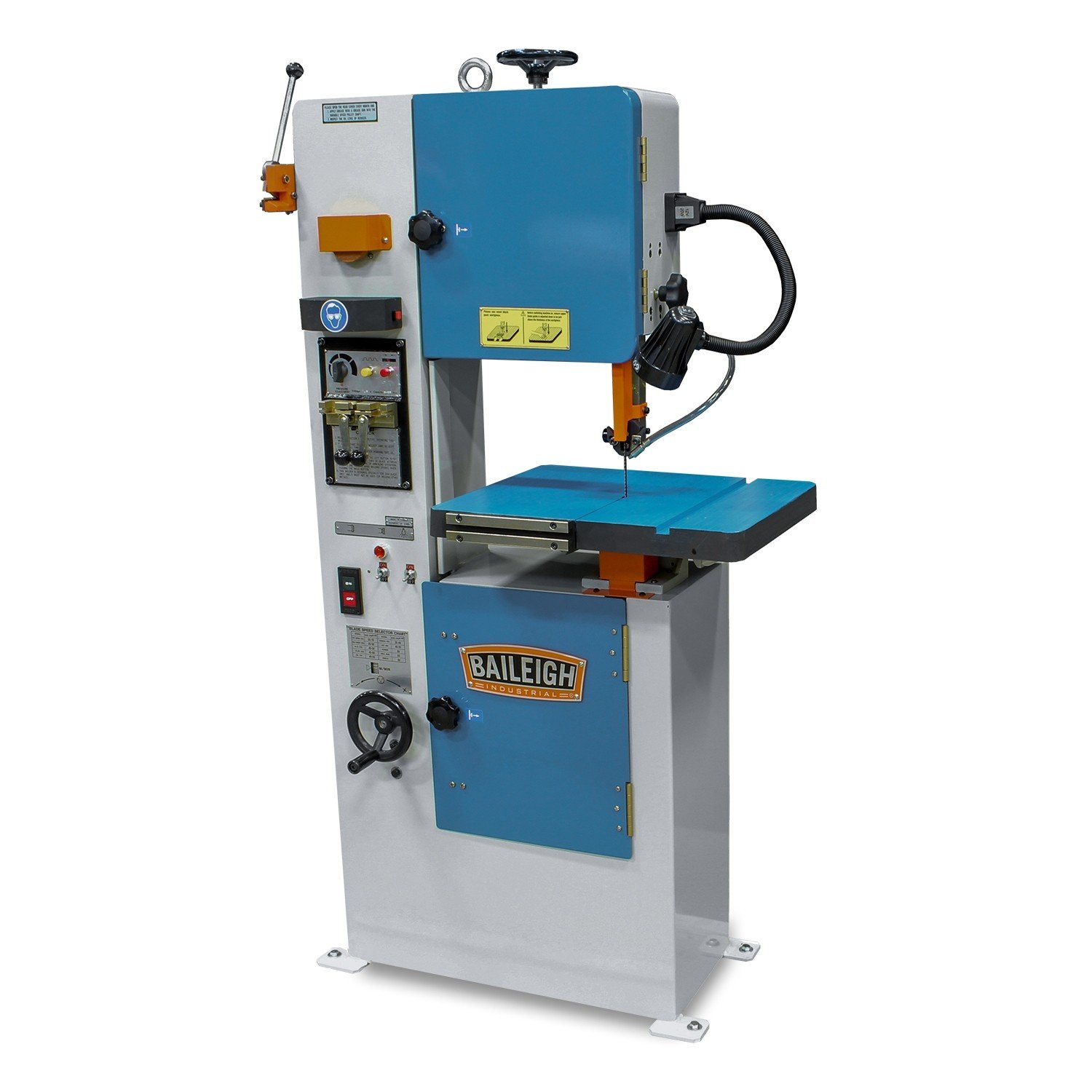

Baileigh 120V Vertical Band Saw BSV-12VS

Baileigh 120V Vertical Band Saw BSV-12VS is a Baileigh Industrial product in the Band Saws collection.

Product Details

• .5 hp motor runs on 120-volt power
• Wide 12.2" throat depth
• Accepts standard 1/8” to 1/2” blades
• Variable speed from 65 to 295 fpm
• Description
• Within Baileigh's lineup of vertical bandsaws, the BSV-12VS metal cutting band saw increases capacity and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.
• Features
• 6.875” maximum cutting thickness.
• Cast iron table can pivot front to back and left to right.
• Variable speed from 65 to 295 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.

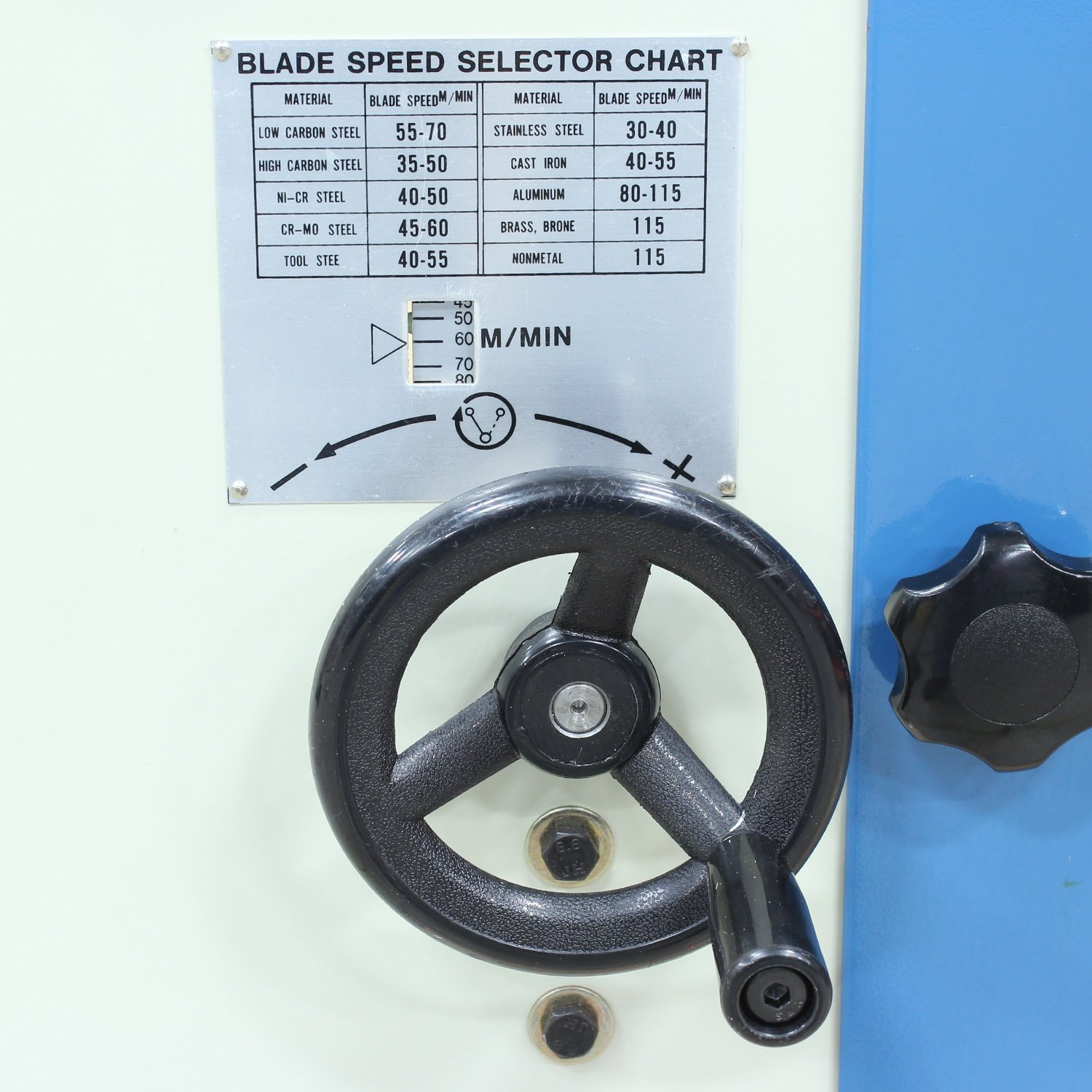

• Change the speed with the hand wheel (just turn right for higher speed, left for lower).
• Speed scale lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.

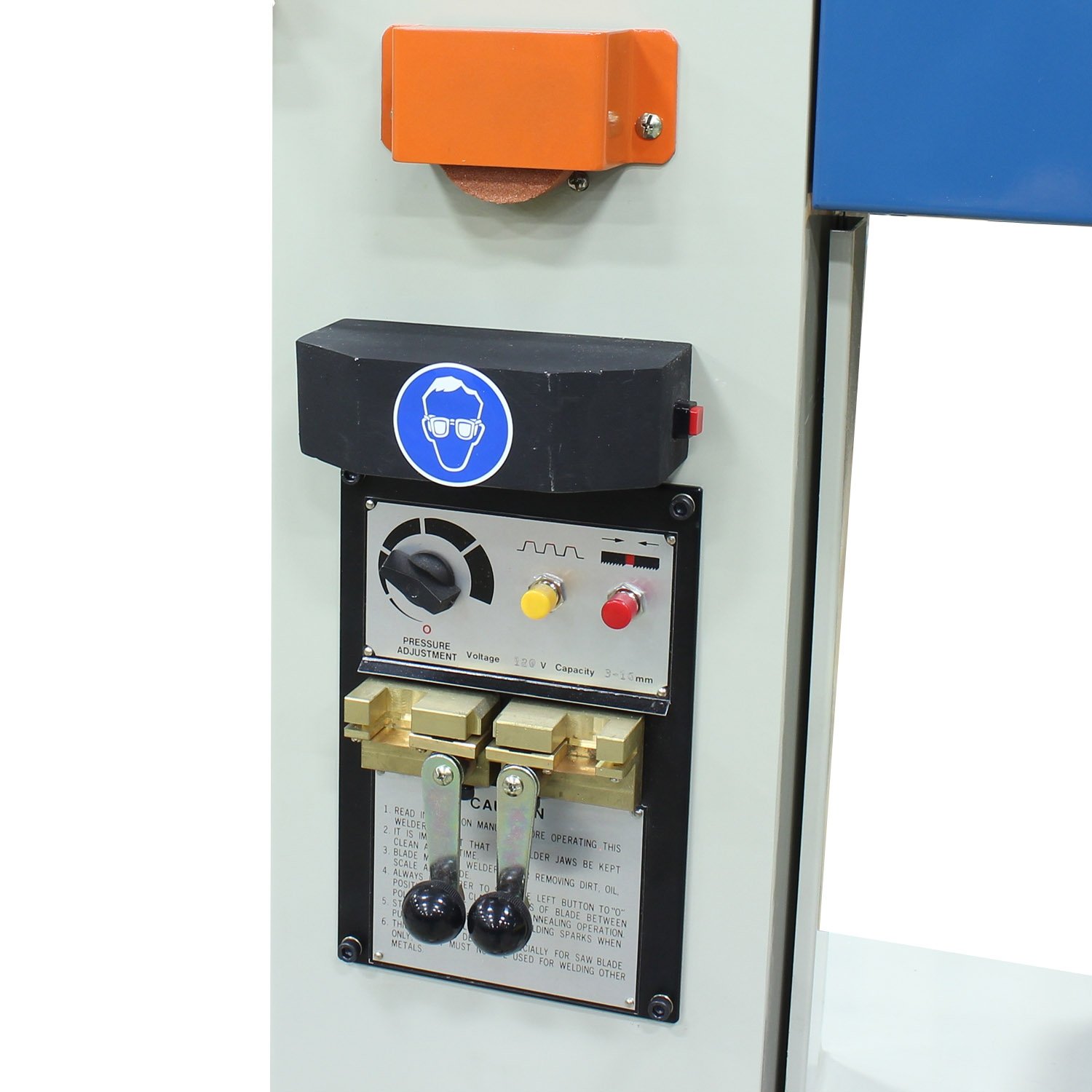

• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.
• Specifications
• Item Number: BSV-12VS
• Table Size: 19.68” x 15.75”
• Butt-Welder Capacity (Blade Width): .125” – .5”
• Slant of Table: 15° Left, 15° Right, 15° Front, 15° Back
• Motor: .5 hp
• Maximum Thickness: 6.875"
• Throat Depth: 12.2"
• Working Height: 35"
• Blade Length: 99.25"
• Blade Speed: 65 – 295 fpm
• Blade Thickness: .032"
• Power: 120 volt
• Shipping Weight: 668 lbs
• Shipping Dimensions (Inches): 60” x 45” x 81”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1230387
• UPC: 19907010364
• Shipping Method: LTL Freight
• Weight: 394 lb
• Dimensions: 60 × 45 × 81 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
