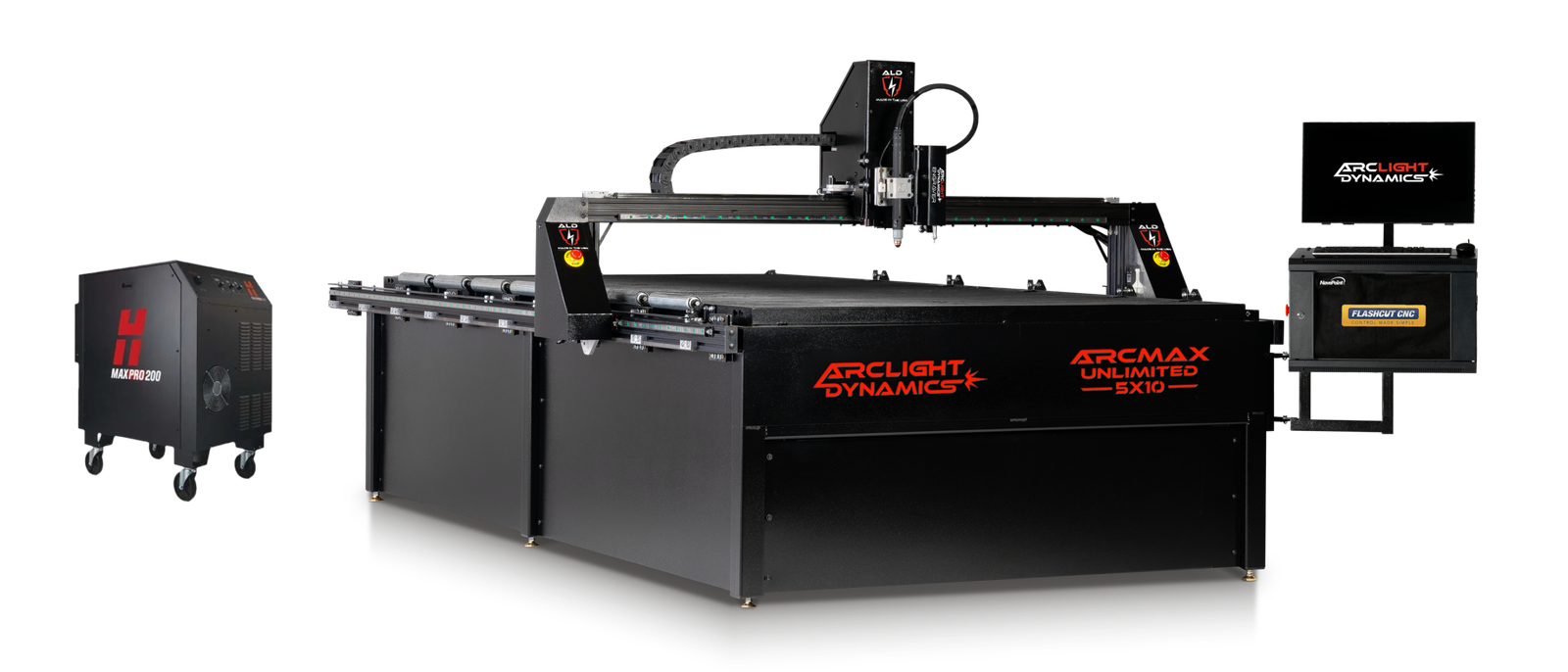

Arclight Arc Max Unlimited 5×10 CNC Plasma Table With 3” Thick Mild Steel Capacity and Flashcut Control System

Arclight Arc Max Unlimited 5×10 CNC Plasma Table With 3” Thick Mild Steel Capacity and Flashcut Control System is a Arclight Dynamics product in the CNC Plasma Tables collection.

Product Details

• Weight Capacity: 3” Thick Mild Steel
• Cutting Envelope: 62" x 124" x 6.5"
• Water Pan Capacity: 300 Gallons
• Table Power: 110V / 15-20A
• Description
• The Arc Max Unlimited 5×10 CNC Plasma Table is the no-compromise solution for your shop, when simplified ease of use, production capability, and heavy plate processing are essential to your business’s success. With integrated FlashCut CNC – reliability, accuracy, and efficiency are at the foundation of the design of Arc Max Unlimited series tables.
• The Arc Max Unlimited is built on a reinforced, welded and unitized frame of thick steel tubing, allowing for heavy-duty cutting applications up to 3 inches thick with the OxyFuel cutting system. The precision-designed gantry is engineered from low mass aircraft grade aluminum, providing exceptional rigidity and first-class acceleration and deceleration characteristics; most desirable in high-performance CNC plasma tables.
• FlashCut CNC comes standard on all Arc Max Unlimited tables. Decades of experience, superior features and tens of thousands of satisfied customers world-wide make FlashCut’s fully integrated CAD/CAM/CNC plasma control system among the best in the world.
• The Unlimited Series CNC Plasma Tables are designed to easily change between Hypertherm MAXPRO200, Powermax 45, 65, 85, 105 or 125 Power Supplies or OxyFuel Cutting Processes. Capable of cutting a dynamic range of material from thin-gauge sheet metal through 3-inch thick plate with ease.
• Standard Performance Features
• Advanced Flashcut CNC Software
• Go from Drawing to Toolpath to Cutting all in one.
• Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
• Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
• Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
• Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
• Fix tool finds and corrects CAD mistakes instantly
• Easily bridge internal cut outs such as the center of an “O”
• Welded Steel Frame
• The Arc Max Unlimited frame is designed specifically to hold up to 3-inch thick mild steel plate across its entire cutting envelope.
• 3″ by 3″ steel tubing
• 3/16″ thickness wall steel tubing
• Fully welded unitized frame
• Gusseted Legs
• Powder coated frame
• Provides a rock solid base for fast accurate cutting
• Slat surface flush with side of table with built in rollers to assist in loading plate
• Engineered low mass, high strength aluminum gantry
• Fast acceleration and deceleration
• Combination of High Mass Frame and Low Mass Gantry leads to excellent acceleration and deceleration qualities without vibration or noise, resulting in accurate and smooth plasma cuts.
• 8.5″ clearance
• Hiwin® Precision Linear Rails
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
• Extra Deep Water Table
• 8 1/2″ deep 12g steel water pan
• Expanded metal barrier to catch small parts
• Reduces thermal distortion
• Longer runtime before annual cleaning
• Captures 90% of smoke and dust reducing airborne contaminants
• Cools parts quickly for immediate inspection
• Reduces heat affected zone
• Twin 1.25″ ball valve drains
• Specifications
• Overall Dimensions: 88” x 143” x 60”
• Weight Capacity: 3” Thick Mild Steel (Using OxyFuel Cutting System)
• Frame: Fully Welded Steel
• Positioning Accuracy: .001"
• Dimensions At Base: 70" x 133"
• Overall Weight: 3250 Pounds
• Controller: Flashcut CNC
• Plasma Cutter: Not Included, Sold Separately
• Available Options & Accessories
• Plasma Cutter Hypertherm Powermax 45XP Hypertherm Powermax 65 SYNC Hypertherm Powermax 85 SYNC Hypertherm Powermax 105 SYNC Hypertherm Powermax 125 Hypertherm MAXPRO200 MP200 Quick Disconnect Torch Head MP200 Consumable Kit
• Hypertherm Powermax 45XP
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 125
• Hypertherm MAXPRO200
• MP200 Quick Disconnect Torch Head
• MP200 Consumable Kit
• Software Upgrades Design2Fab (HVAC Ductwork, Lifetime license) Design2Fab (HVAC Ductwork, Annual license) VCarve Pro Router Table Software ProNest LT Unlimited (Annual license)
• Design2Fab (HVAC Ductwork, Lifetime license)
• Design2Fab (HVAC Ductwork, Annual license)
• VCarve Pro Router Table Software
• ProNest LT Unlimited (Annual license)
• Dual Plasma Torch Upgrade
• Collision Detection and Bevel Cutting System
• Dynamic Water Control
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Touch Screen Monitor
• Laser Plate Alignment System
• Flashcut Mobile Cabinet
• Flashcut Hand Held Control Pendant
• Plasma Rover
• Cabinet Cover
• Green Guard Rust Blocker
• OxyFuel Cutting System
• Pipe and Tube Cutter
• Router Kit
• Plate Engrave
• Logic Board Digitizing System (44" x 60")
• *PLASMA CUTTERS SOLD SEPERATLY

Specifications

• Manufacturer: Arclight Dynamics
• SKU: Arc Max Unlimited 5 x 10
• Shipping Method: LTL Freight
• Weight: 3,250 lb
• Dimensions: 88 × 143 × 60 in
• Country of Origin: United States of America
• Warranty Details: 3 years for CommandCNC-based (Standard) Systems, 1 year for Flashcut-based (Elite and Unlimited) Systems
