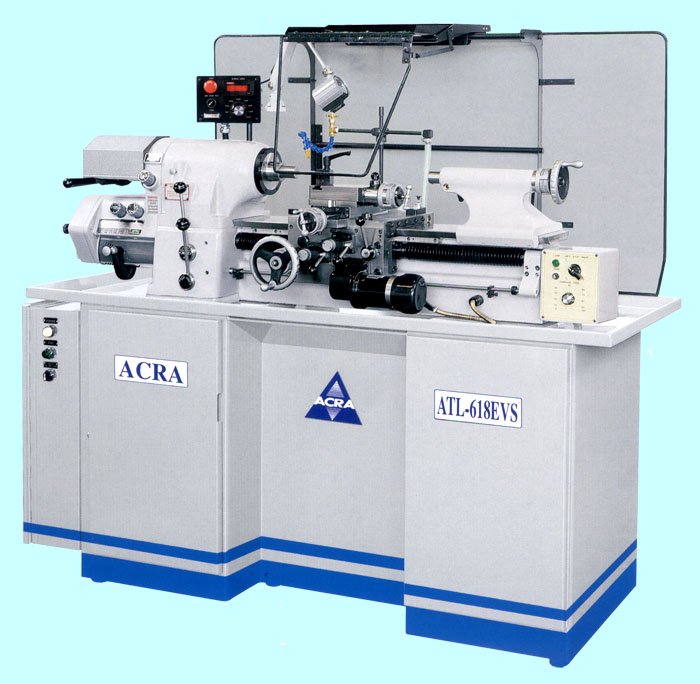

Acra ATL618 EVS Precision Tool Room Lathe ATL618EVS1

Acra ATL618 EVS Precision Tool Room Lathe ATL618EVS1 is a Acra Machinery product in the Lathes collection.

Product Details

• Spindle Nose Diameter: 2 3/16"
• Swing Over Bed: 11"
• Cross Slide Power Feed Range: 0.197" ~ 4.015"
• Spindle RPM (Variable): 50 ~ 4000 RPM
• Standard Equipment
• 5C Lever Collet Closer
• Special Tools
• Coolant System
• Halogen Light
• Direct Reading Spindle Speeds
• Tool Holder
• Specifications
• Spindle Nose 5C (10º) / 4º x Taper
• Spindle Motor 3 HP / 5 HP (Optional)
• Hole Through Spindle: 1 1/4"
• Bar Stock Diameter (5C Collet):1 1/16"
• Carriage Power Feed Range 0.315" ~ 7.00"
• Cross Slide Travel 5.984"
• Coolant Pump 1/8 HP, 220V, 3PH
• Feed Motor 220V
• Net Weight 2222 LBS
• Shipping Weight 2310 LBS
• Dimensions (LxWxH) 73" x 30" x 67"

Specifications

• Manufacturer: Acra Machinery
• SKU: ATL618EVS1
• Shipping Method: LTL Freight
• Weight: 2,310 lb
