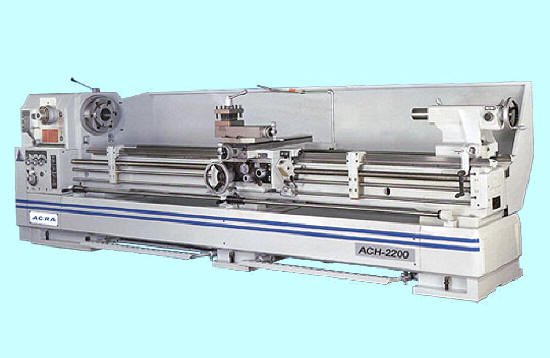

Acra 2600 Precision Engine Lathe 26X60ACH

Acra 2600 Precision Engine Lathe 26X60ACH is a Acra Machinery product in the Lathes collection.

Product Details

• Swing Over Bed 26"
• Distance Between Centers 60"
• Voltage 220 / 440V AC / 3 PH
• Spindle Speeds 13-1200 RPM
• Standard Equipment
• 15" 3 Jaw Chuck
• Steady (1 3/5" – 10")
• Coolant System
• Halogen Light
• 4 Way Tool Holder
• Full Length Splash Guard
• Specifications
• Swing Over Cross Slide 17 3/8"
• Swing In Gap 35 3/8"
• Bed Width 15 3/4"
• Spindle Nose D1-11
• Spindle Bore 4 1/8"
• Taper of Spindle MT NO.7
• Spindle Speeds – Steps 12
• Spindle Speeds – Range 13-1200 RPM
• Cross Slide Travel 15 3/4"
• Compound Slide Travel 9 9/16"
• Inch Threads 2-72 TPI
• Metric Threads 0.2-14 mm
• Longitudinal Feeds 0.035-0.09"/rev
• Cross Feeds 0.0175-0.045"/rev
• Quill Diameter 2 15/16"
• Quill Travel 7"
• Quill Taper MT NO.5
• Motor 15 HP
• Dimension 230" x 50" x 60"

Specifications

• Manufacturer: Acra Machinery
• SKU: ATEL2660ACH
• Shipping Method: Flatbed
• Weight: 6,700 lb
• Dimensions: 0 × 0 × 0 in
